SKU: GNE70-KRR-B-INA

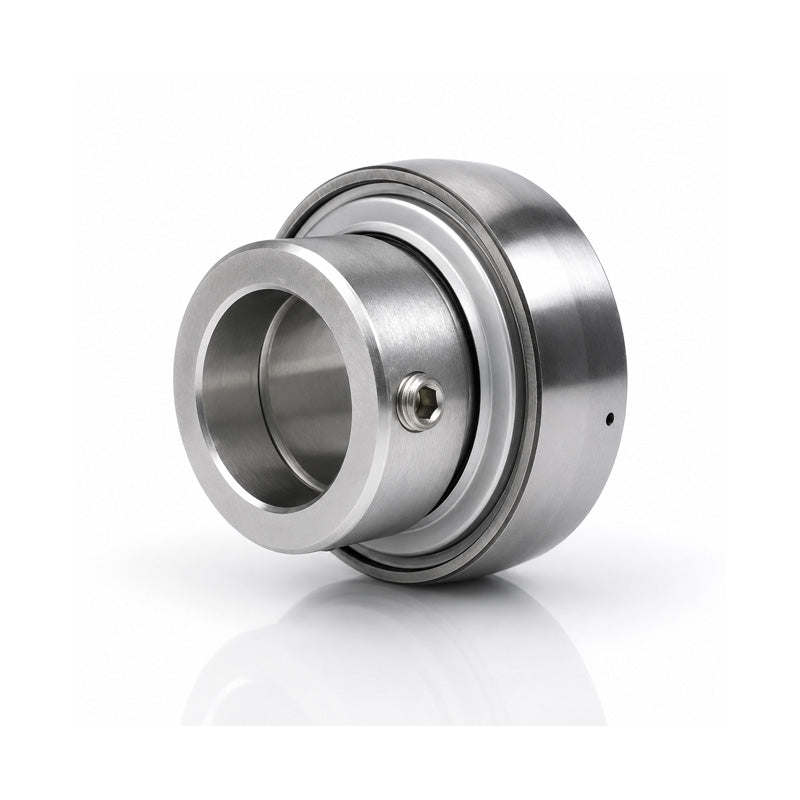

INA GNE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 70x150x75.5mm
INA GNE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 70x150x75.5mm
Regular price
CHF 282.23
ex VAT
Regular price
Sale price
CHF 282.23
ex VAT
In stock
Price Break
10+
CHF 251.18
19+
CHF 237.07
29+
CHF 234.25
39+
CHF 231.43
49+
CHF 228.61
74+
CHF 225.78
99+
CHF 211.67
199+
CHF 208.85
249+
CHF 206.03
499+
CHF 203.21
999+
CHF 197.56
Couldn't load pickup availability
Description
Description
|
INA GNE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 75.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 70mm |
|---|---|
| Dsp | 150mm |
| B1 | 75.5mm |
| B | 58mm |
| C | 37mm |
| C2 | 41mm |
| Ca | 12mm |
| D1 | 127mm |
| d1 | 92.2mm |
| d3 max | 102mm |
| S | 26mm |
| W | 6mm |
| Dynamic load Cr | 104000 N |
| Static load C0r | 68000 N |
| Weight | 3.81 kg |
