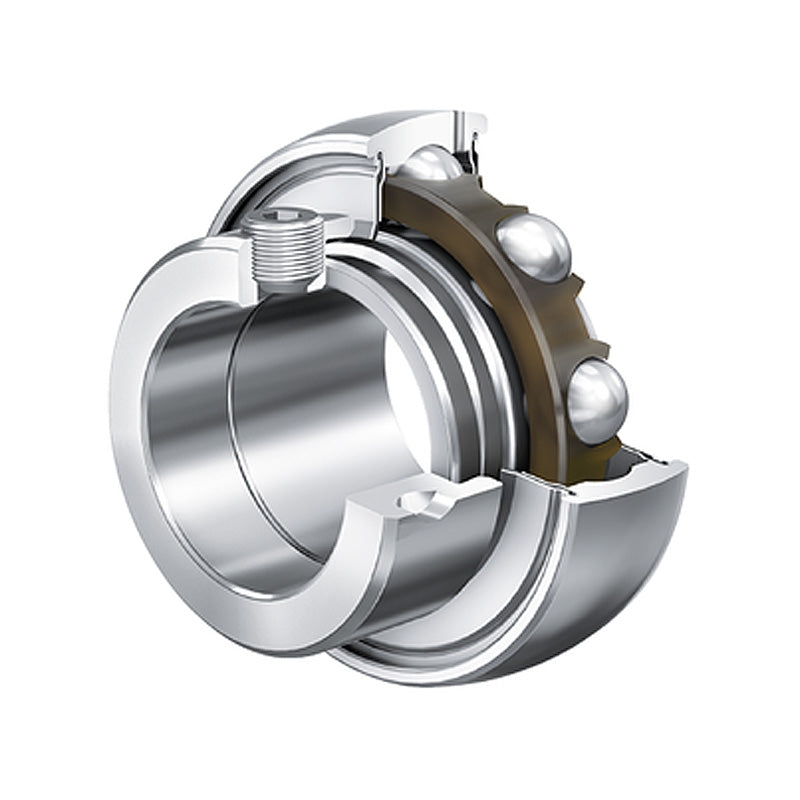

INA GRA012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 19.05x47x31mm
INA GRA012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 19.05x47x31mm
Regular price
CHF 19.08
ex VAT
Regular price
Sale price
CHF 19.08
ex VAT
In stock
Price Break
10+
CHF 16.98
19+
CHF 16.03
29+
CHF 15.84
39+
CHF 15.65
49+
CHF 15.45
74+
CHF 15.26
99+
CHF 14.31
199+
CHF 14.12
249+
CHF 13.93
499+
CHF 13.74
999+
CHF 13.36
Couldn't load pickup availability
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Width:
- 31mm
- Type:
- Spherical Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| d | 19.05mm |
| Dsp | 1.8504 inch |
| Dsp | 47mm |
| B1 | 1.2200 inch |
| B1 | 31mm |
| B | 0.843 inch |
| C | 0.551 inch |
| Ca | 0.157 inch |
| d2 | 1.059 inch |
| d3 | 1.299 inch |
| S | 0.295 inch |
| W | 1/8 inch |
| Dynamic load Cr | 2900 lbf |
| Dynamic load Cr | 12800 N |
| Static load C0r | 1480 lbf |
| Static load C0r | 6600 N |
| Weight | 0.35 lbs |
