SKU: GRA104-206-NPP-B-AS2/V-INA

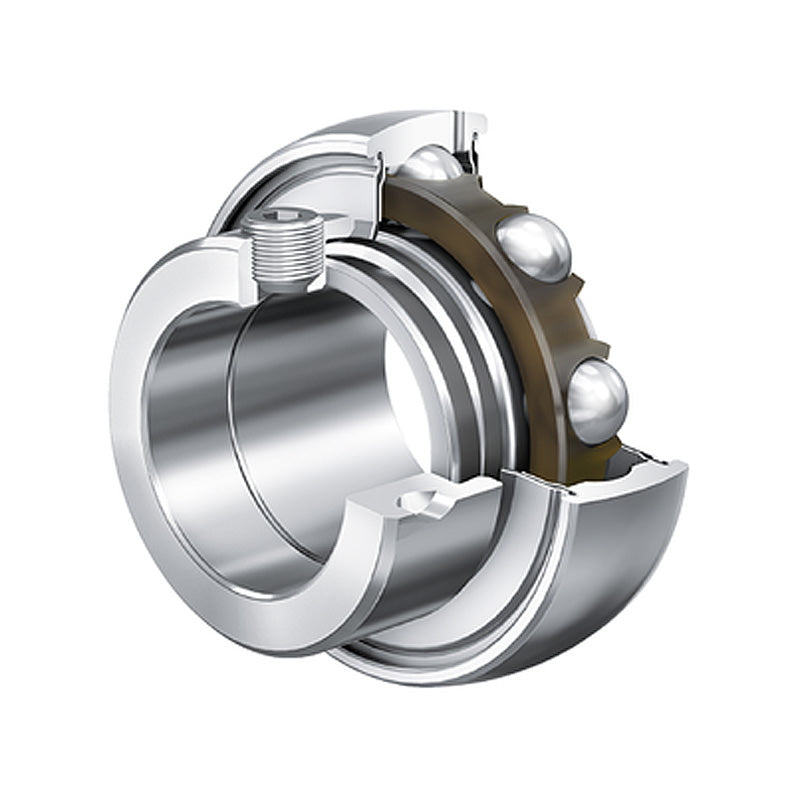

INA GRA104206NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x62x35.8mm
INA GRA104206NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x62x35.8mm
Regular price
CHF 27.22
ex VAT
Regular price
Sale price
CHF 27.22
ex VAT
In stock
Price Break
10+
CHF 24.23
19+
CHF 22.86
29+
CHF 22.59
39+
CHF 22.32
49+
CHF 22.05
74+
CHF 21.78
99+
CHF 20.42
199+
CHF 20.14
249+
CHF 19.87
499+
CHF 19.60
999+
CHF 19.05
Couldn't load pickup availability
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| d | 31.75mm |
| Dsp | 2.4409 inch |
| Dsp | 62mm |
| B1 | 1.4090 inch |
| B1 | 35.8mm |
| B | 0.937 inch |
| C | 0.709 inch |
| Ca | 0.185 inch |
| d2 | 1.472 inch |
| d3 | 1.732 inch |
| S | 0.354 inch |
| W | 5/32 inch |
| Dynamic load Cr | 4350 lbf |
| Dynamic load Cr | 19500 N |
| Static load C0r | 2550 lbf |
| Static load C0r | 11300 N |
| Weight | 0.68 lbs |
