SKU: GRA104-NPP-B-AS2/V-INA

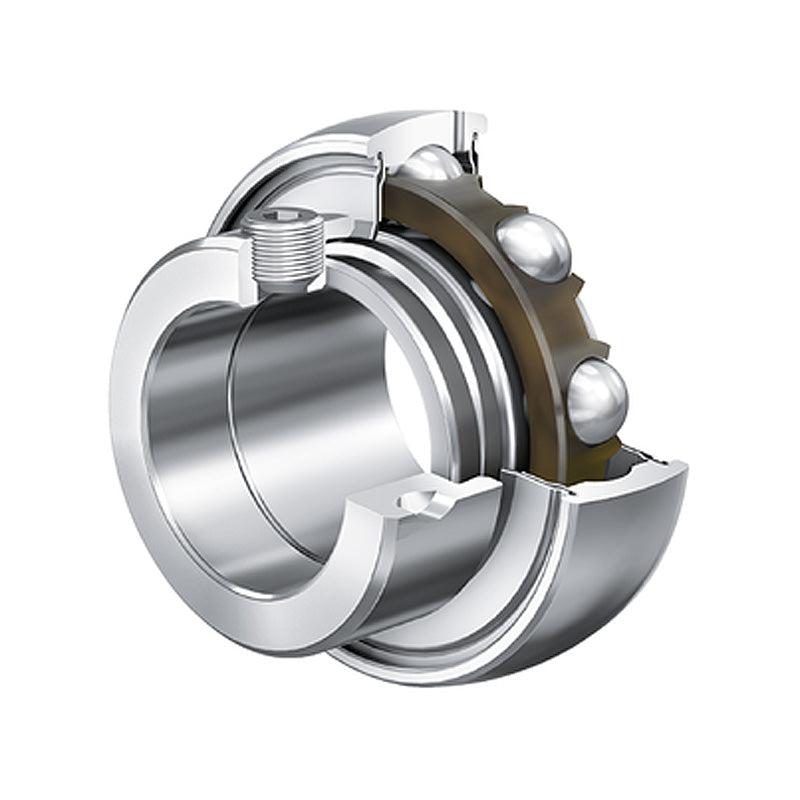

INA GRA104NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x72x39mm
INA GRA104NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x72x39mm
Regular price
CHF 36.48
ex VAT
Regular price
Sale price
CHF 36.48
ex VAT
In stock
Price Break
10+
CHF 32.47
19+
CHF 30.64
29+
CHF 30.28
39+
CHF 29.91
49+
CHF 29.55
74+
CHF 29.18
99+
CHF 27.36
199+
CHF 27.00
249+
CHF 26.63
499+
CHF 26.27
999+
CHF 25.54
Couldn't load pickup availability
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Width:
- 39mm
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| d | 31.75mm |
| Dsp | 2.8346 inch |
| Dsp | 72mm |
| B1 | 1.5350 inch |
| B1 | 39mm |
| B | 1 inch |
| C | 0.748 inch |
| Ca | 0.22 inch |
| d2 | 1.756 inch |
| d3 | 2.008 inch |
| S | 0.374 inch |
| W | 3/16 inch |
| Dynamic load Cr | 5800 lbf |
| Dynamic load Cr | 25500 N |
| Static load C0r | 3450 lbf |
| Static load C0r | 15300 N |
| Weight | 1.1 lbs |
