SKU: GRA108-NPP-B-AS2/V-INA

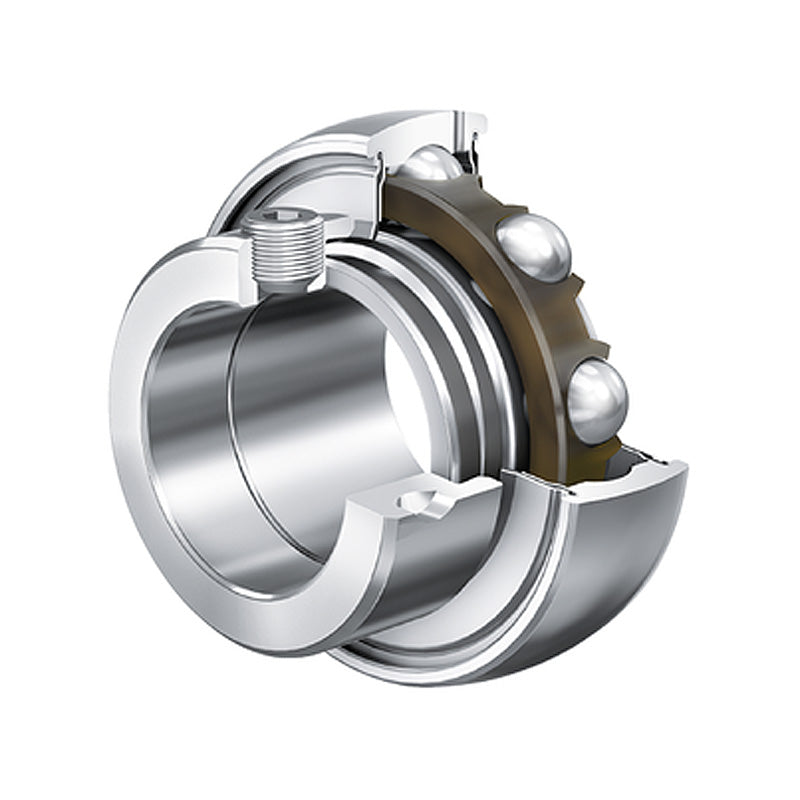

INA GRA108NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 38.1x80x43.8mm
INA GRA108NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 38.1x80x43.8mm
Regular price
CHF 47.64
ex VAT
Regular price
Sale price
CHF 47.64
ex VAT
In stock
Price Break
10+
CHF 42.40
19+
CHF 40.02
29+
CHF 39.54
39+
CHF 39.06
49+
CHF 38.59
74+
CHF 38.11
99+
CHF 35.73
199+
CHF 35.25
249+
CHF 34.78
499+
CHF 34.30
999+
CHF 33.35
Couldn't load pickup availability
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Width:
- 43.8mm
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| d | 38.1mm |
| Dsp | 3.1496 inch |
| Dsp | 80mm |
| B1 | 1.7240 inch |
| B1 | 43.8mm |
| B | 1.189 inch |
| C | 0.827 inch |
| Ca | 0.252 inch |
| d2 | 1.945 inch |
| d3 | 2.283 inch |
| S | 0.433 inch |
| W | 3/16 inch |
| Dynamic load Cr | 7300 lbf |
| Dynamic load Cr | 32500 N |
| Static load C0r | 4450 lbf |
| Static load C0r | 19800 N |
| Weight | 1.39 lbs |
