SKU: GRA40-XL-INA

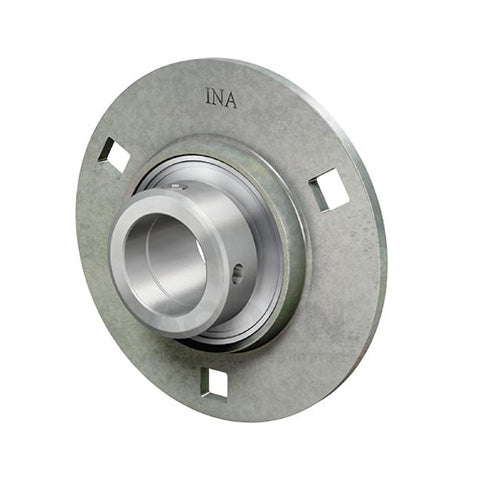

INA GRA40XL Four Bolt Sheet Steel Round Housing with Eccentric Collar Insert 40mm Bore
INA GRA40XL Four Bolt Sheet Steel Round Housing with Eccentric Collar Insert 40mm Bore
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
4+
CHF 42.76
9+
CHF 40.35
19+
CHF 39.87
29+
CHF 39.39
39+
CHF 38.91
49+
CHF 38.43
59+
CHF 36.03
69+
CHF 35.55
79+
CHF 35.07
89+
CHF 34.59
99+
CHF 33.63
Description
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Can be re-lubricated via a lubrication nipple, suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- GRA
- Pitch Circle Diameter:
- 119mm
Technical
Technical
| d | 40mm |
|---|---|
| H | 147.5mm |
| B1 | 43.8mm |
| A | 10.3mm |
| d3 max | 58mm |
| J | 119mm |
| N | 13.5mm |
| Number of screw holes | 4 |
| S | 3.5mm |
| U | 36.2mm |
| V | 90 |
| Mass | 1.36 kg |
| Load carrying capacity of housing Cor G | 7700 N |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | FLAN80-MSB (1 X) / FLAN80-MSA (1 X) |
| Designation of bearing | GRAE40-XL-NPP-B |
