SKU: GRAE40-NPP-B-INA

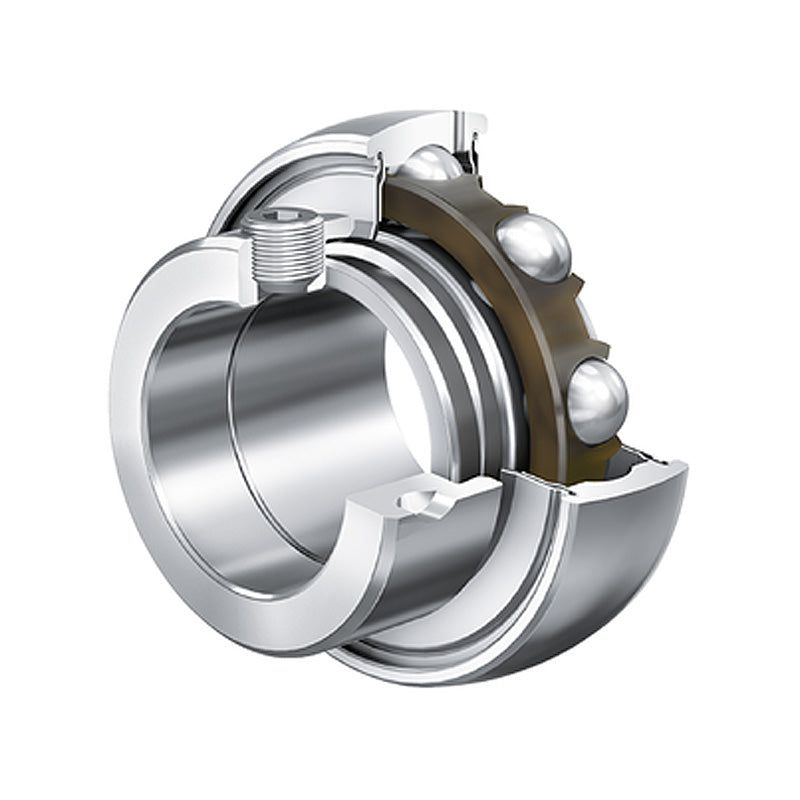

INA GRAE40XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 40x80x43.8mm
INA GRAE40XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 40x80x43.8mm
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
In stock
Price Break
3+
CHF 34.40
5+
CHF 32.47
10+
CHF 32.08
15+
CHF 31.69
20+
CHF 31.31
30+
CHF 30.92
40+
CHF 28.99
50+
CHF 28.60
60+
CHF 28.21
75+
CHF 27.83
100+
CHF 27.06
Description
Description
|
INA GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 43.8mm
Technical
Technical

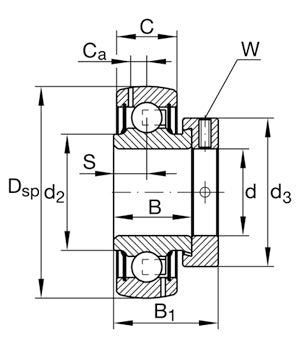

| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 21mm |
| Ca | 6.4mm |
| d2 | 49.4mm |
| d3 max | 58mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.62 kg |
