SKU: GRAE55-NPP-B-INA

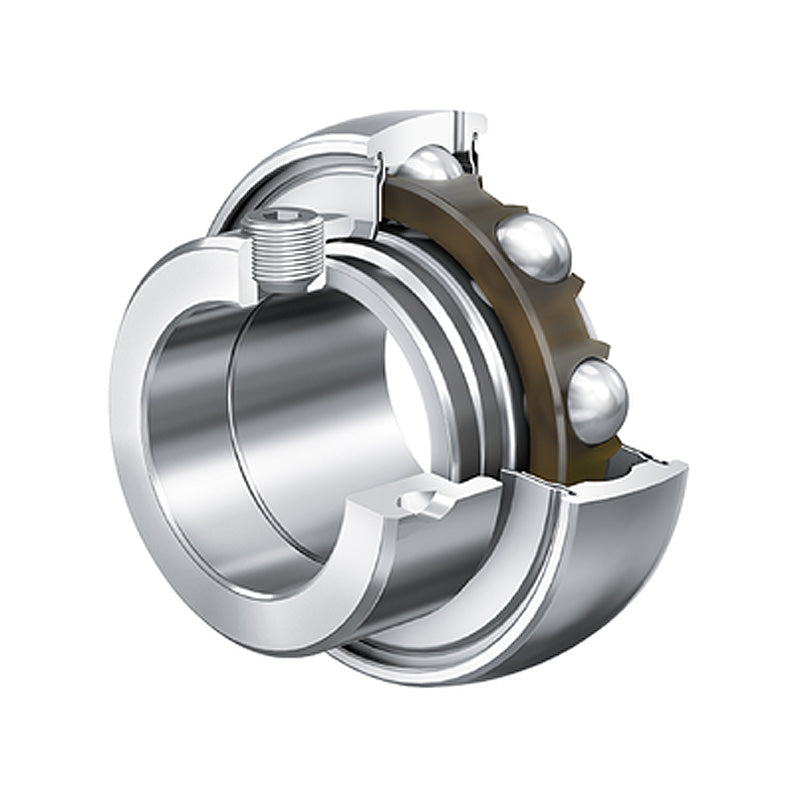

INA GRAE55XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 55x100x48.4mm
INA GRAE55XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 55x100x48.4mm
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
In stock
Price Break
3+
CHF 54.74
5+
CHF 51.66
10+
CHF 51.05
15+
CHF 50.43
20+
CHF 49.82
30+
CHF 49.20
40+
CHF 46.13
50+
CHF 45.51
60+
CHF 44.90
75+
CHF 44.28
100+
CHF 43.05
Description
Description
|
INA GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 48.4mm
Technical
Technical
| d | 55mm |
|---|---|
| Dsp | 100mm |
| B1 | 48.4mm |
| B | 32.5mm |
| C | 25mm |
| Ca | 7mm |
| d2 | 66mm |
| d3 max | 76mm |
| S | 12mm |
| W | 5mm |
| Dynamic load Cr | 43500 N |
| Static load C0r | 29000 N |
| Weight | 1.06 kg |
