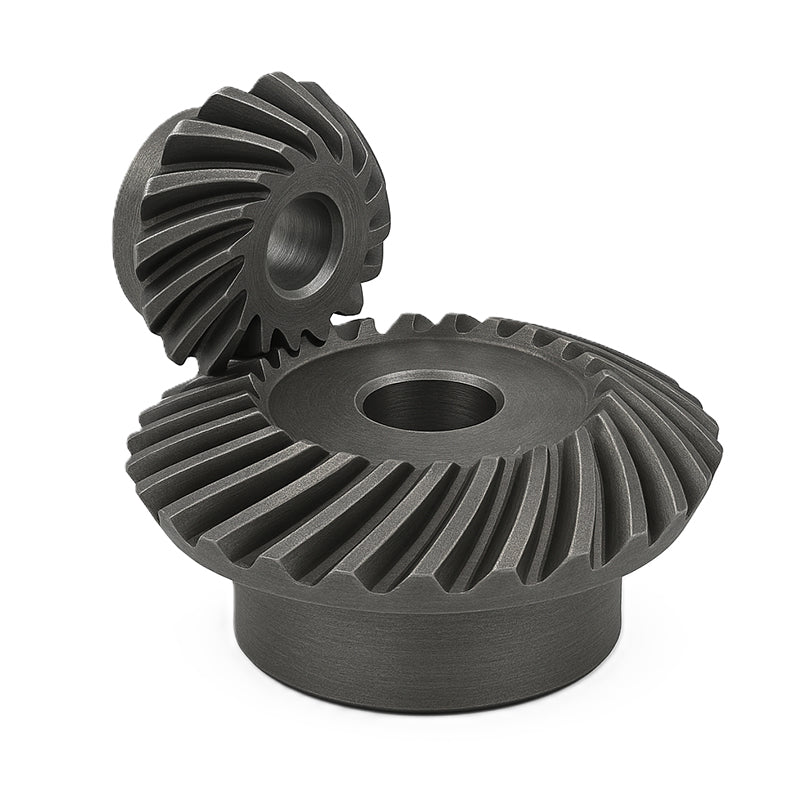

Driveflex GRSRBSP15/2 Metric Steel Spiral Bevel Gear Pair with 1.5 MOD and 16/32 Teeth

Steel Bevel Gears: Steel bevel gears are precision-engineered components designed for smooth and efficient power transmission between intersecting shafts. These gears are suitable for a wide range of applications such as differential gear units, marine, auto, power plants, printing presses, and machine tools. Bevel Gears are paired together and used to change the direction of power transmission as well as the speed. The reduction ratio varies between gear pairs but is greater for Spiral Bevel Gears.
Lubrication: In most cases standard lubrication by oils or greases is acceptable, gears potentially subject to severe weather or chemical exposure should have their lubrication and protection selected specifically for that application. eg: waterproof grease etc.
Material: EN8 Steel - a medium strength steel with good tensile strength manufactured to DIN standards. It can be hardened and is readily machineable in any state.
Benefits: Compact, versatile, durable

• DIN 3964, DIN 3967, DIN 3971
• Standard tolerances, unless otherwise stated ±0.25 mm
• Shaft axis to intersect within ±0.025mm
• Angular accuracy between shafts ±5mins
• Mounting distance tolerance ±0.05mm
• Bore tolerance H8
• Cut to the Gleason System
• 20° pressure angle
• Supplied in pairs
• Steel EN8, (080M40/080M46) or equivalent 1:1 Ratio

Brand / Quality:

Drive-Flex - High Quality

Bore:

G1: 10mm / G2: 12mm

Material:

Steel EN8, 080M40/080M47

Number of Teeth:

16/32

Pitch Circle Diameter:

G1: 26.5mm / G2: 48.3mm
