SKU: GSH25-2RSR-B+H205-INA

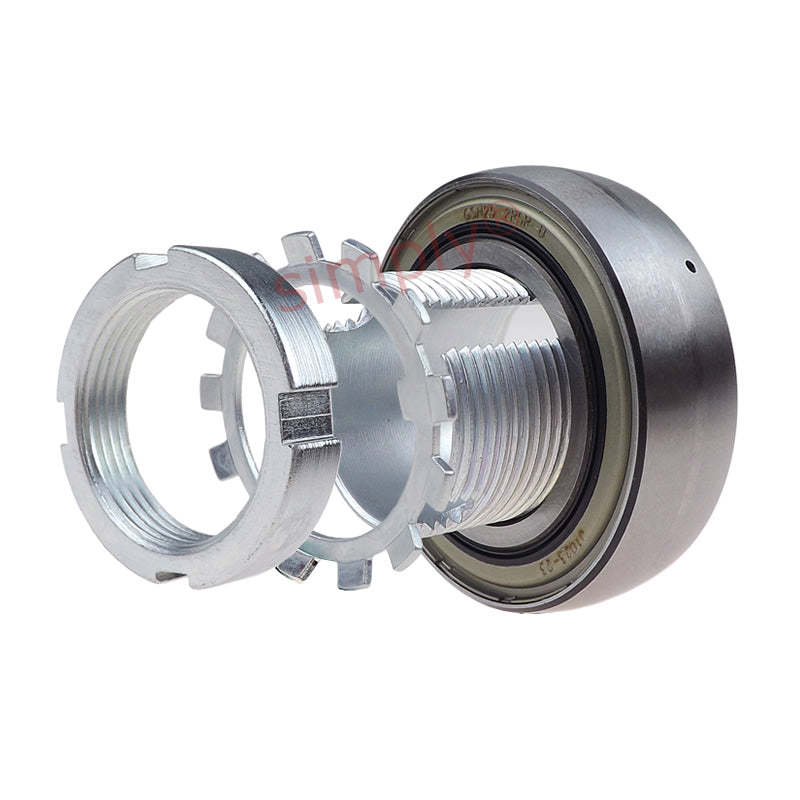

INA GSH25XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals and Adaptor Sleeve fits 25mm Shafts
INA GSH25XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals and Adaptor Sleeve fits 25mm Shafts
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
Low stock
Price Break
3+
CHF 42.22
5+
CHF 41.78
10+
CHF 41.33
15+
CHF 40.89
20+
CHF 40.45
30+
CHF 40.00
40+
CHF 39.56
50+
CHF 39.11
60+
CHF 38.67
75+
CHF 38.22
100+
CHF 37.78
Share this product
Description
Description
|
INA GSH..-2RSR-B Series Inserts: Bearing insert with spherical outer race and RSR seals. The inner ring is located on the shaft by an adaptor sleeve with a locknut and a tab washer. The adaptor sleeve and locknut give concentric, force locking location of the bearing inner ring on the shaft. This results in speeds that can be achieved the same as with deep groove ball bearings. These bearings also give quieter running than normal radial insert ball bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C Benefits: Can be re-lubricated, quieter running than normal bearing inserts, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 28mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 28mm |
| B | 15mm |
| C | 15mm |
| Ca | 3.9mm |
| S | 7.5mm |
| Weight | 0.17 kg |
| Dynamic load Cr | 13600 N |
| Static load | 8100 N |
| Limiting speed | 8000 rpm |
