SKU: GSH50-2RSR-B?INA
INA GSH50XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals and Adaptor Sleeve fits 50mm Shafts
INA GSH50XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals and Adaptor Sleeve fits 50mm Shafts
Regular price
CHF 148.00
ex VAT
Regular price
Sale price
CHF 148.00
ex VAT
In stock
Price Break
3+
CHF 117.34
5+
CHF 110.75
10+
CHF 109.43
15+
CHF 108.11
20+
CHF 106.79
30+
CHF 105.47
40+
CHF 98.88
50+
CHF 97.56
60+
CHF 96.24
75+
CHF 94.92
100+
CHF 92.29
Description
Description
|

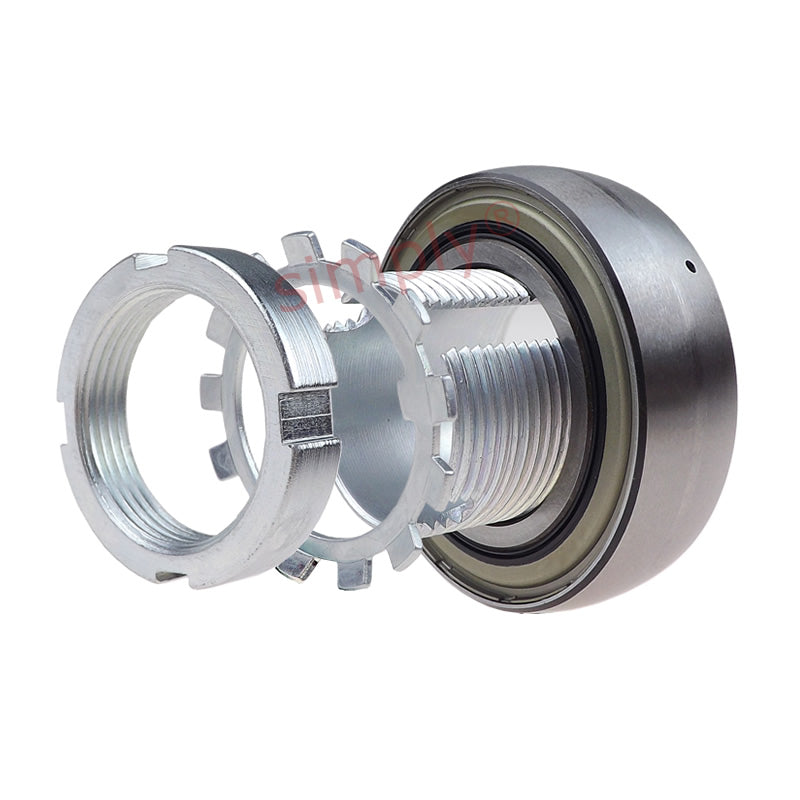

INA GSH..-2RSR-B Series Inserts: Bearing insert with spherical outer race and RSR seals. The inner ring is located on the shaft by an adaptor sleeve with a locknut and a tab washer. The adaptor sleeve and locknut give concentric, force locking location of the bearing inner ring on the shaft. This results in speeds that can be achieved the same as with deep groove ball bearings. These bearings also give quieter running than normal radial insert ball bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C Benefits: Can be re-lubricated, quieter running than normal bearing inserts, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 40mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 40mm |
| B | 22mm |
| C | 22mm |
| Ca | 6.5mm |
| S | 11mm |
| Weight | 0.64 kg |
| Dynamic load Cr | 33000 N |
| Static load | 23100 N |
| Limiting speed | 4000 rpm |
