SKU: GVK100-208-KTT-B-AS2/V-INA

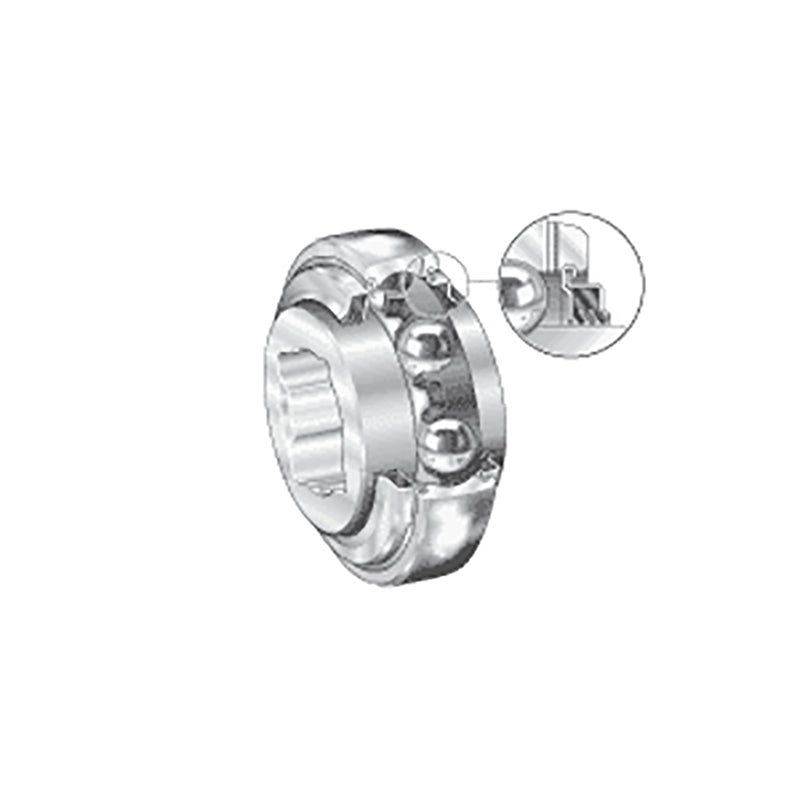

INA GVK100208KTTBAS2/V Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1 inch Bore
INA GVK100208KTTBAS2/V Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1 inch Bore
Regular price
CHF 85.14
ex VAT
Regular price
Sale price
CHF 85.14
ex VAT
In stock
Price Break
10+
CHF 75.77
19+
CHF 71.52
29+
CHF 70.67
39+
CHF 69.81
49+
CHF 68.96
74+
CHF 68.11
99+
CHF 63.86
199+
CHF 63.00
249+
CHF 62.15
499+
CHF 61.30
999+
CHF 59.60
Couldn't load pickup availability
Description
Description
|
INA GVK..-KTT-B Series Inserts: Bearing insert with spherical outer race, square bore and T seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 80mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
- Type:
- Spherical Outer
Technical
Technical
| d | 25.4mm |
|---|---|
| d | 1 inch |
| Tolerance | +0.9 / +0.6 |
| Dsp | 80mm |
| B | 36.5mm |
| C | 21mm |
| C2 | 28.1mm |
| Ca | 6.4mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| F | 35.4mm |
| r | 2.5mm |
| Limiting speed nG Fett | 500 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.74 kg |
