SKU: GVK102-208-KTT-B-AH10-AS2/V-INA

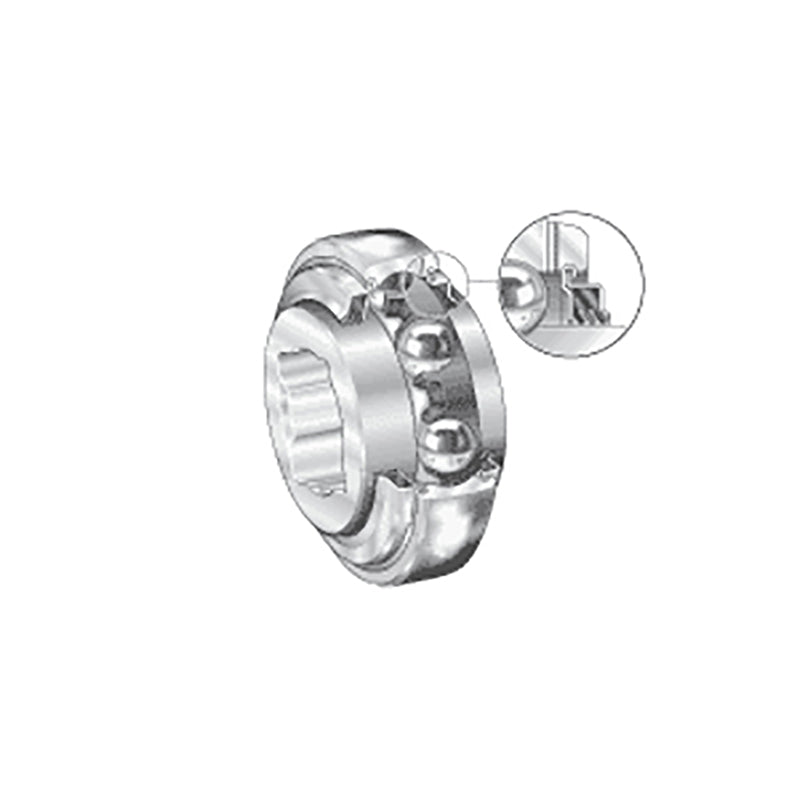

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
Regular price
CHF 86.00
ex VAT
Regular price
Sale price
CHF 86.00
ex VAT
In stock
Price Break
3+
CHF 68.22
5+
CHF 64.39
10+
CHF 63.62
15+
CHF 62.85
20+
CHF 62.09
30+
CHF 61.32
40+
CHF 57.49
50+
CHF 56.72
60+
CHF 55.95
75+
CHF 55.19
100+
CHF 53.66
Description
Description
|
INA GVK..-KTT-B Series Inserts: Bearing insert with spherical outer race, square bore and T seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 80mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 28.58mm |
|---|---|
| d | 1-1/8 inch |
| Tolerance | +0.9 / +0.6 |
| Dsp | 80mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 25.3mm |
| Ca | 5.8mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| F | 41.3mm |
| r | 2.5mm |
| Limiting speed nG Fett | 500 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.68 kg |
