SKU: GW208PPB22-MB

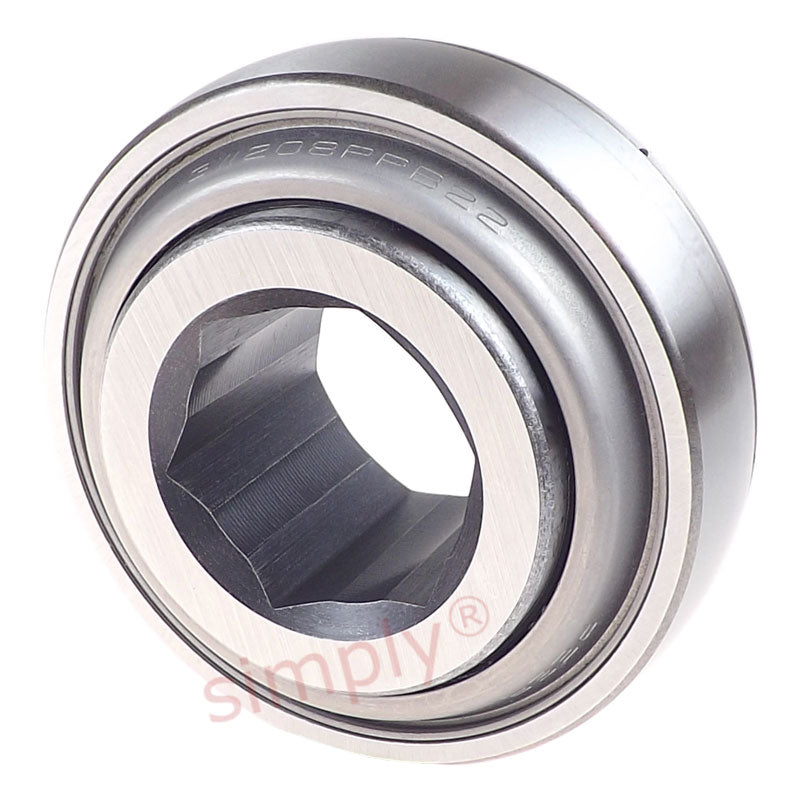

Major Brand GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch
Major Brand GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch
Regular price
CHF 40.61
ex VAT
Regular price
Sale price
CHF 40.61
ex VAT
Low stock
Price Break
10+
CHF 36.14
19+
CHF 34.11
29+
CHF 33.71
39+
CHF 33.30
49+
CHF 32.89
74+
CHF 32.49
99+
CHF 30.46
199+
CHF 30.05
249+
CHF 29.65
499+
CHF 29.24
999+
CHF 28.43
Couldn't load pickup availability
Description
Description
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 31.77mm = 1.251 inch
- Outside Diameter:
- 79.99mm = 3.149 inch
- Width:
- 36.53mm = 1.437 (1-7/16) inch
Technical
Technical
| d | 1.251 inch = 31.7754mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 3.1496 inch = 79.99984mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 1.438 inch = 36.5252mm |
| Be | 0.827 inch = 21.0058mm |
| Be & Bi | (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | P, TRL Seal |
| Load Ratings Dynamic | 7340 lbf |
| Load Ratings Static | 3650 lbf |
