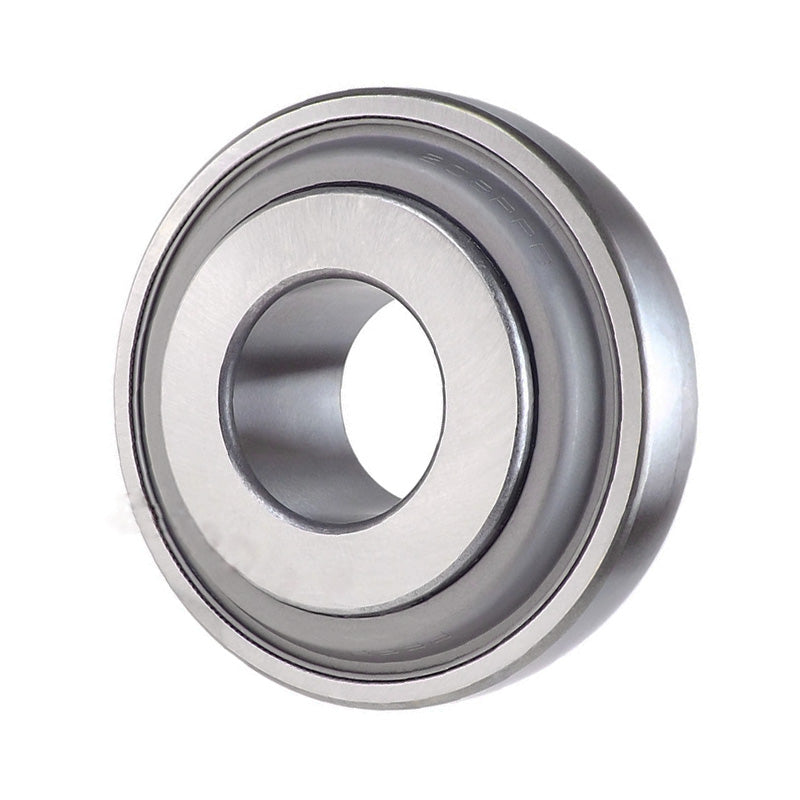

• Major Brand GW214PPB5 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearings 2.7559x4.9213x2.438 inch
1 1

SKU: GW214PPB5-MB

Major Brand GW214PPB5 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearings 2.7559x4.9213x2.438 inch

Major Brand GW214PPB5 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearings 2.7559x4.9213x2.438 inch
CHF 78.00 ex VAT
CHF 78.00 ex VAT
Sale Sold out

Equivalent to: DS214TTR5

Low stock

Price Break
5+ CHF 62.05
9+ CHF 58.57
19+ CHF 57.87
29+ CHF 57.17
49+ CHF 56.47
74+ CHF 55.78
99+ CHF 52.29
199+ CHF 51.59
249+ CHF 50.90
499+ CHF 50.20
999+ CHF 48.81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Gang Disc
Application conditions:

  • Utilizes two to three support bearings on a common shaft with several disks spaced with spools
  • Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
  • A great working depth places the bearings directly into the flow of soil and crop residue
Benefits and functional features:

Bolt-on-performance:
  • Directly interchangeable industry standard units
  • Static misalignment capability accommodates imprecise mounting surfaces
Increased productivity and bearing life in field:
  • Dynamic misalignment capability eliminates internal bearing damage
  • Shock load protection due to high grade ductile iron housing
  • Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe


Equivalent: DS214TTR5
Brand / Quality:
PEER - High Quality
Inside Diameter:
69.99mm = 2.755 inch
Outside Diameter:
125mm = 4.921 inch
Width:
61.92mm = 2.438 inch
Technical
A/d 2.7559 inch = 69.99986mm (Tolerance +.0000 to minus 0.0006)
D 4.9213 inch = 125mm (Tolerance +.0000 to minus 0.0008)
Bi 2.438 inch = 61.9252mm (Tolerance +.0000 to minus 0.006)
Be 1.562 inch = 39.6748mm (Tolerance +.0000 to minus 0.006)
Seal/Shield Type P, TRL Seal
Load Ratings Dynamic 14000 lbf
Load Ratings Static 8800 lbf
