SKU: GX40F-SKF

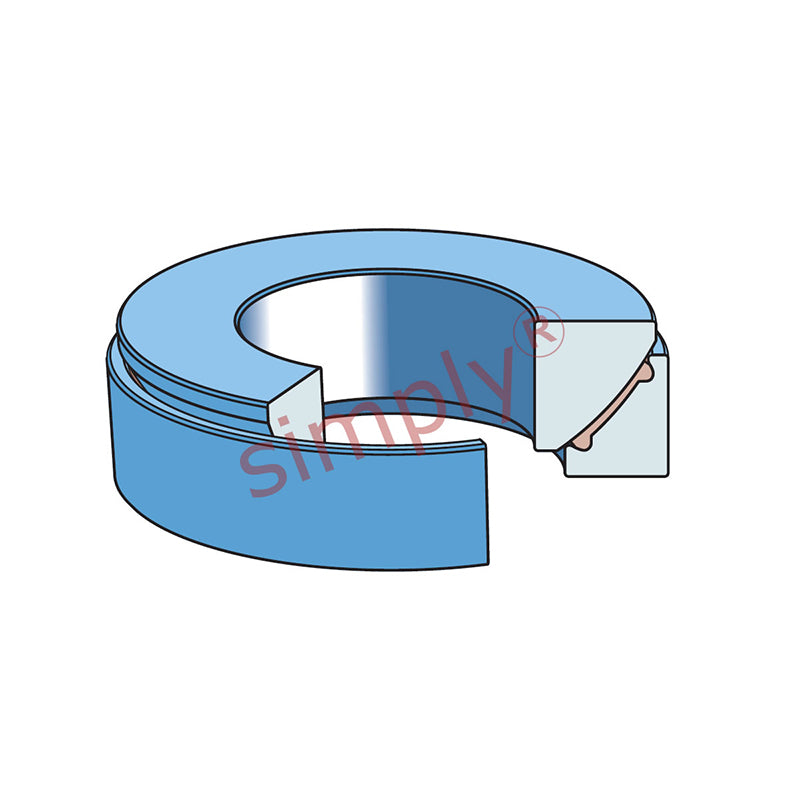

SKF GX40F Maintenance Free Thrust Spherical Plain Bearing 40x105x32mm
SKF GX40F Maintenance Free Thrust Spherical Plain Bearing 40x105x32mm
Regular price
CHF 263.43
ex VAT
Regular price
Sale price
CHF 263.43
ex VAT
Equivalent to: GE40AW GX40T
In stock
Price Break
10+
CHF 234.45
19+
CHF 221.28
29+
CHF 218.65
39+
CHF 216.01
49+
CHF 213.38
74+
CHF 210.74
99+
CHF 197.57
199+
CHF 194.94
249+
CHF 192.30
499+
CHF 189.67
999+
CHF 184.40
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite. |
Equivalent: GE40AW GX40T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 105mm
- Width:
- 32mm

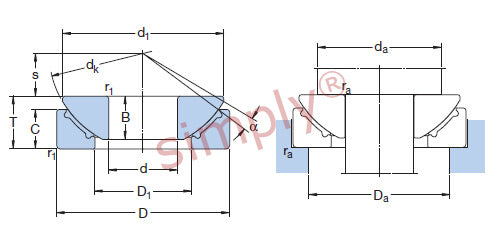

Technical
Technical
| d | 40mm |
|---|---|
| D | 105mm |
| T | 32mm |
| Angle | 6 degree |
| Dynamic load | 173 kN |
| Static load | 275 kN |
| dk | 114mm |
| d1 | 97mm |
| D1 | 59mm |
| B | 27mm |
| C | 21.5mm |
| r1 min | 1mm |
| s | 24.5mm |
| da min | 78mm |
| Da max | 84mm |
| ra max | 1mm |
| Weight | 1.5 kg |
