SKU: GY1102-KRR-B-AS2/V-INA

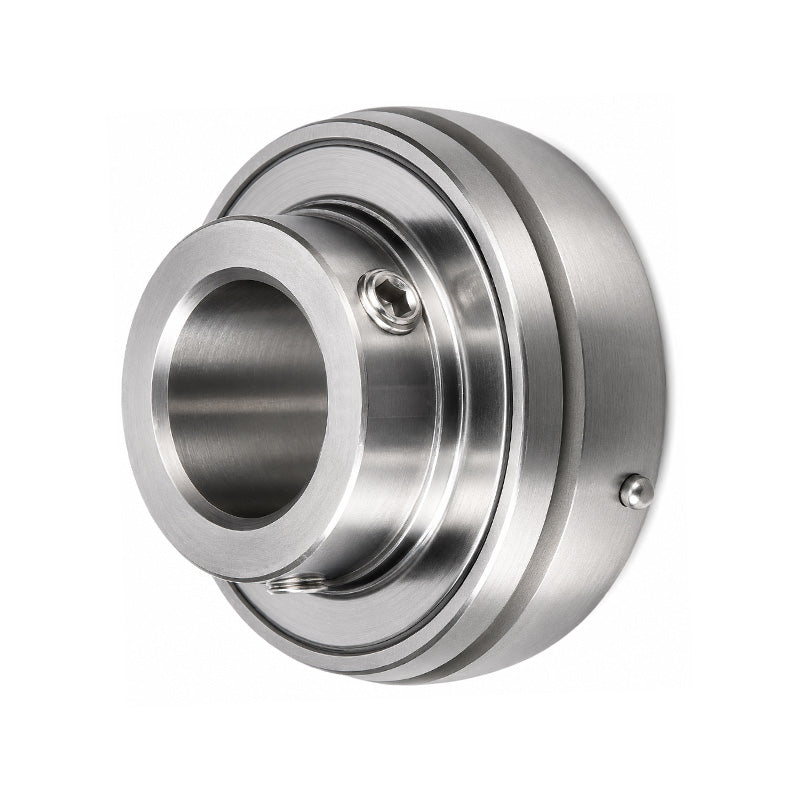

INA GY1102KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 28.58x62x38.1mm
INA GY1102KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 28.58x62x38.1mm
Regular price
CHF 29.47
ex VAT
Regular price
Sale price
CHF 29.47
ex VAT
In stock
Price Break
10+
CHF 26.23
19+
CHF 24.75
29+
CHF 24.46
39+
CHF 24.17
49+
CHF 23.87
74+
CHF 23.58
99+
CHF 22.10
199+
CHF 21.81
249+
CHF 21.51
499+
CHF 21.22
999+
CHF 20.63
Couldn't load pickup availability
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Width:
- 38.1mm
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| d | 28.58mm |
| Dsp | 2.4409 inch |
| Dsp | 62mm |
| B | 1.5000 inch |
| B | 38.1mm |
| A | 0.228 inch |
| C | 0.709 inch |
| C2 | 0.815 inch |
| Ca | 0.185 inch |
| D1 | 2.047 inch |
| d1 | 1.583 inch |
| S | 0.626 inch |
| W | 1/8 inch |
| Dynamic load Cr | 4350 lbf |
| Dynamic load Cr | 19500 N |
| Static load C0r | 2550 lbf |
| Static load C0r | 11300 N |
| Weight | 0.73 lbs |
