SKU: H206-EU

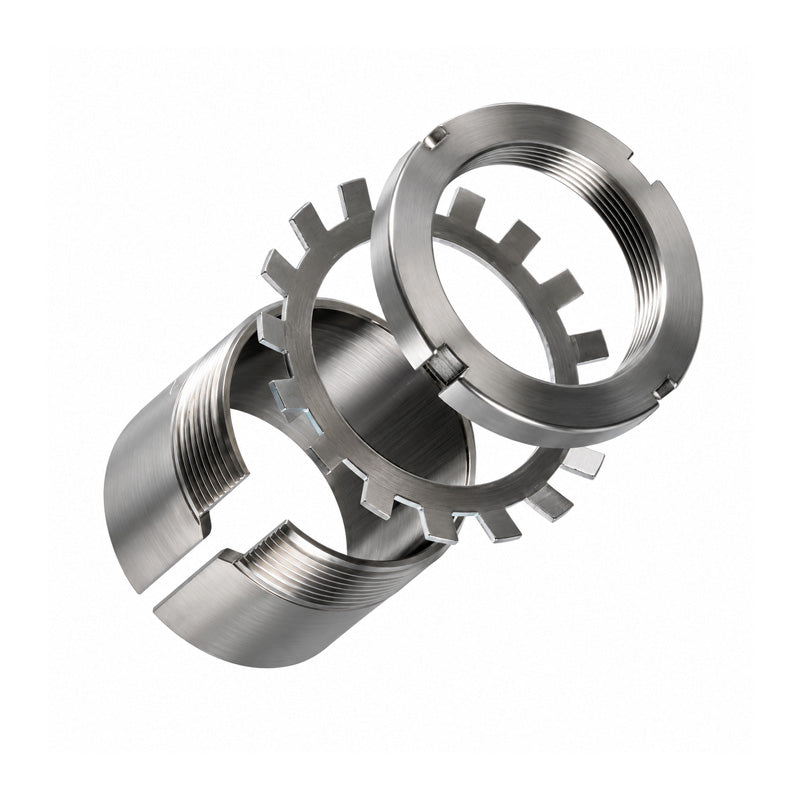

H206 Budget Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
H206 Budget Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
Regular price
CHF 14.00
ex VAT
Regular price
Sale price
CHF 14.00
ex VAT
In stock
Price Break
10+
CHF 10.86
19+
CHF 10.25
29+
CHF 10.12
39+
CHF 10.00
49+
CHF 9.88
74+
CHF 9.76
99+
CHF 9.15
199+
CHF 9.03
249+
CHF 8.91
499+
CHF 8.78
999+
CHF 8.54
Share this product
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 45mm
- Width:
- 27mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 25mm |
| d | 30mm |
| d3 | 45mm |
| B1 | 27mm |
| B2 | 8mm |
| G | Thread 30x1.5mm |
| Weight | 0.086 kg |
| --- | Assembly Parts |
| Sleeve | H206 |
| Nut | KM6 |
| Washer | MB6 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1206K+taper+self+open>1206K</a> |
