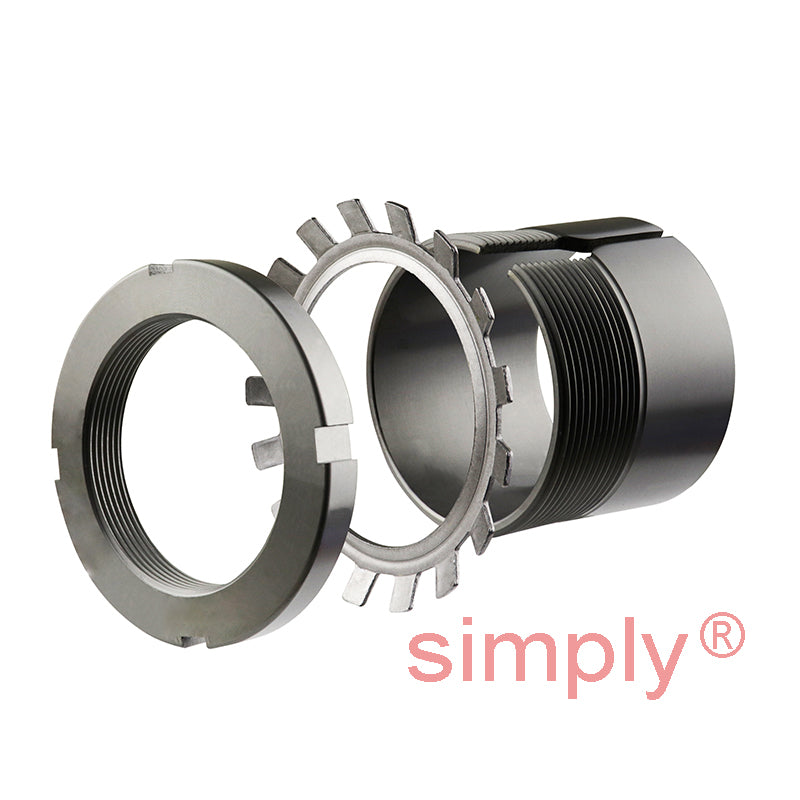

• SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
1 1

SKU: H215-SKF

SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft

SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
CHF 60.00 ex VAT
CHF 60.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 47.68
5+ CHF 45.00
10+ CHF 44.47
20+ CHF 43.93
49+ CHF 43.39
74+ CHF 42.86
99+ CHF 40.18
199+ CHF 39.64
249+ CHF 39.11
499+ CHF 38.57
999+ CHF 37.50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
98mm
Width:
43mm
Technical
--- Dimensions
d1 65mm
d 75mm
d3 98mm
B1 43mm
B2 14.5mm
G Thread 75x2mm
Weight 0.66 kg
--- Assembly Parts
Sleeve H215
Nut KM15
Washer MB15
Hydraulic nut HMV15E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1215K+taper+self+open>1215K</a>
