SKU: H2317-SKF

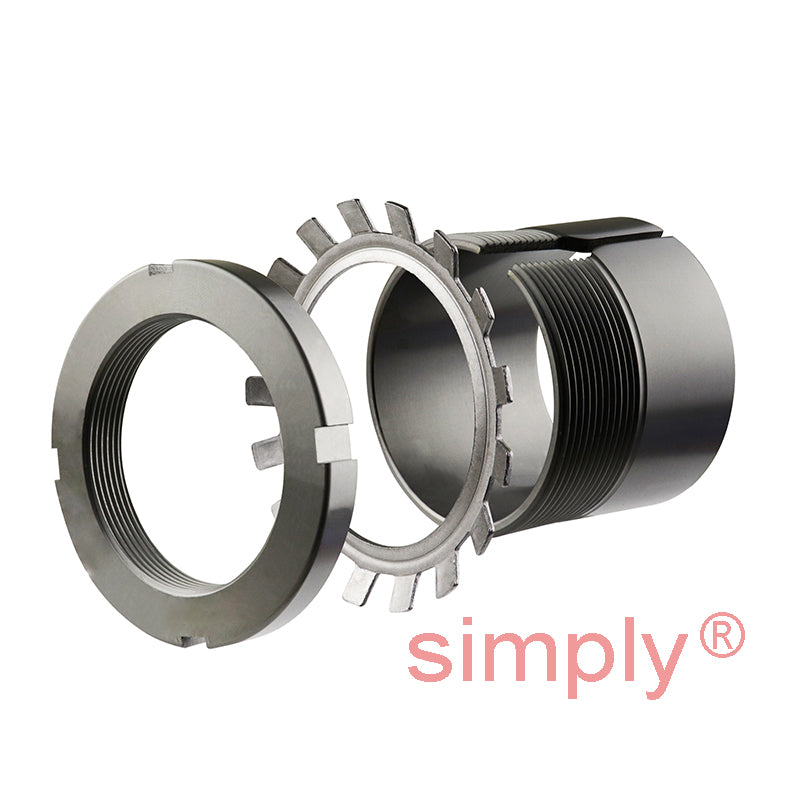

SKF H2317 Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
SKF H2317 Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
Regular price
CHF 88.16
ex VAT
Regular price
Sale price
CHF 88.16
ex VAT
In stock
Price Break
10+
CHF 78.46
19+
CHF 74.05
29+
CHF 73.17
39+
CHF 72.29
49+
CHF 71.41
74+
CHF 70.53
99+
CHF 66.12
199+
CHF 65.24
249+
CHF 64.36
499+
CHF 63.48
999+
CHF 61.71
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 110mm
- Width:
- 82mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 75mm |
| d | 85mm |
| d3 | 110mm |
| B1 | 82mm |
| B2 | 18mm |
| G | Thread 85x2mm |
| Weight | 1.35 kg |
| --- | Assembly Parts |
| Sleeve | H2317 |
| Nut | KM17 |
| Washer | MB17 |
| Hydraulic nut | HMV17E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2317K+taper+self+open>2317K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22317K+taper>22317K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2317K+taper>C2317K</a> |
