SKU: H3028-FAG

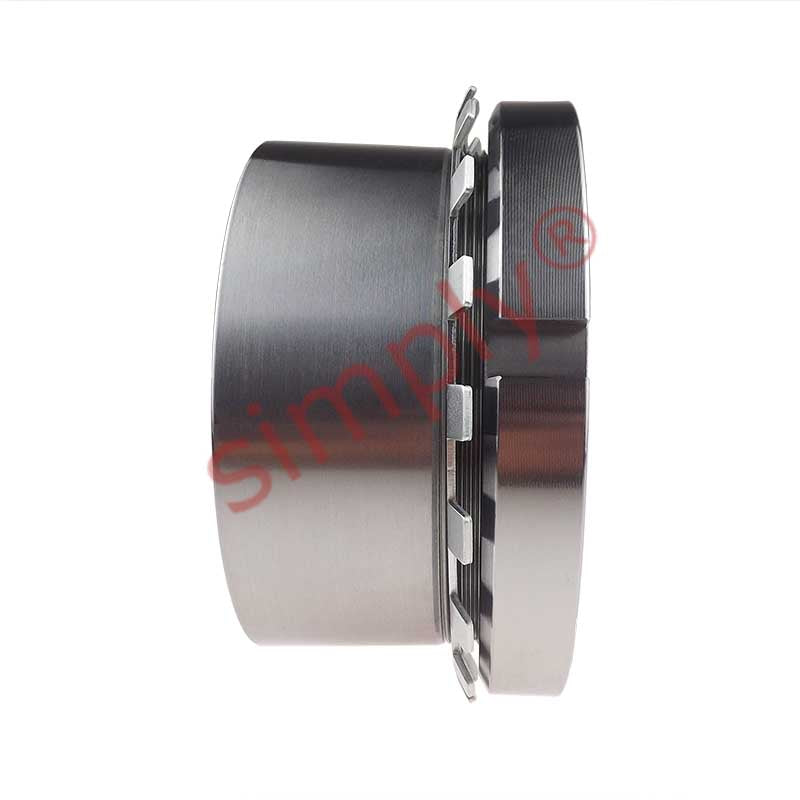

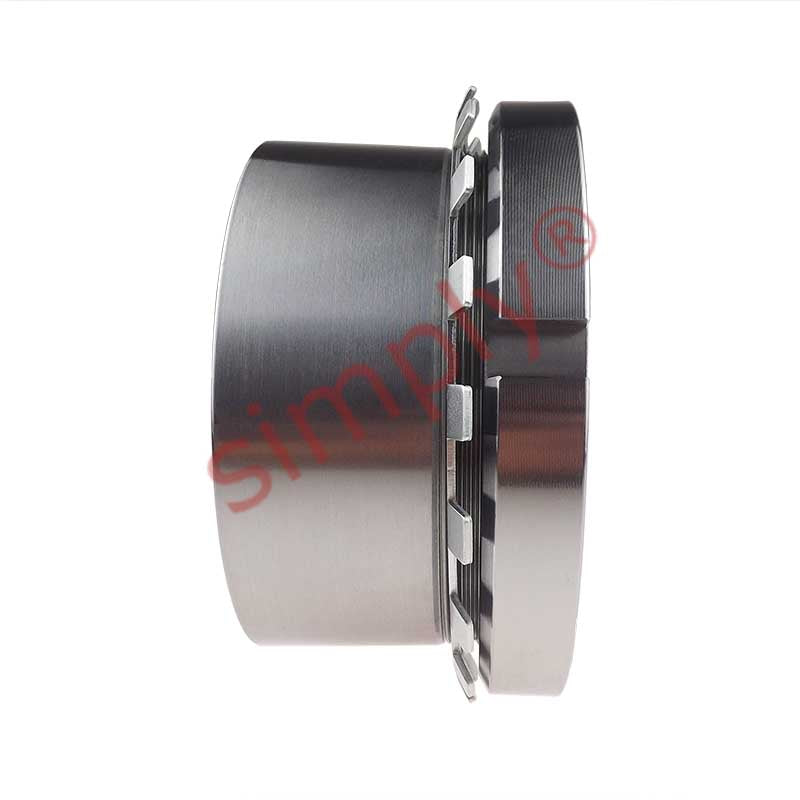

FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
Regular price
CHF 230.40
ex VAT
Regular price
Sale price
CHF 230.40
ex VAT
In stock
Price Break
10+
CHF 205.06
19+
CHF 193.54
29+
CHF 191.23
39+
CHF 188.93
49+
CHF 186.62
74+
CHF 184.32
99+
CHF 172.80
199+
CHF 170.50
249+
CHF 168.19
499+
CHF 165.89
999+
CHF 161.28
Couldn't load pickup availability
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 125mm
- Outside Diameter:
- 165mm
- Width:
- 82mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 125mm |
| d | 165mm |
| d3 | 165mm |
| B1 | 82mm |
| B2 | 24mm |
| G | Thread 140x2mm |
| Weight | 3.05 kg |

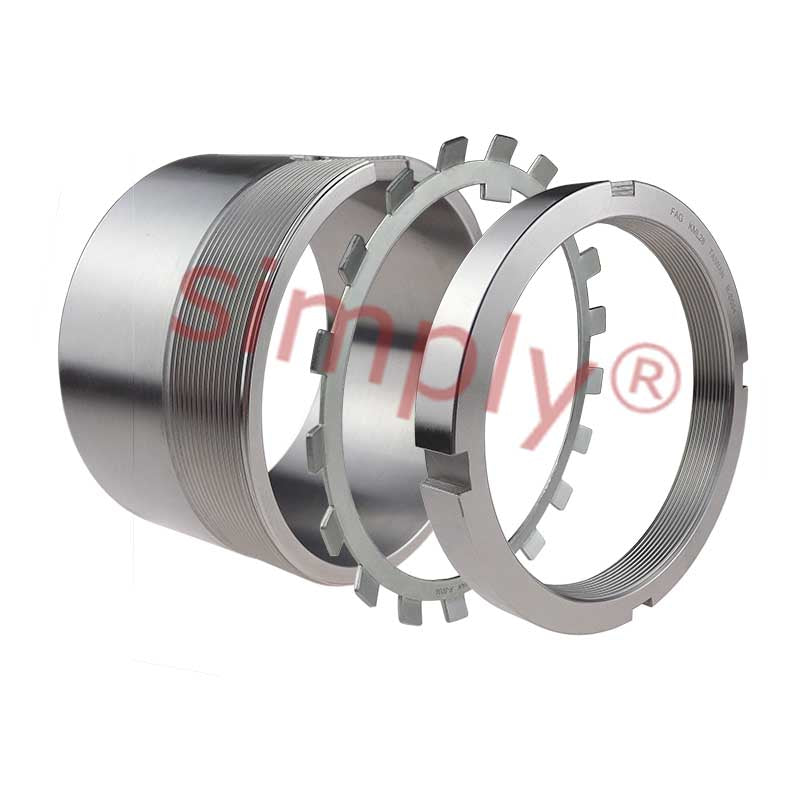

| --- | Assembly Parts |
| Sleeve | H2028 |
| Nut | KML28 |
| Washer | MBL28 |
