SKU: H305C-SKF

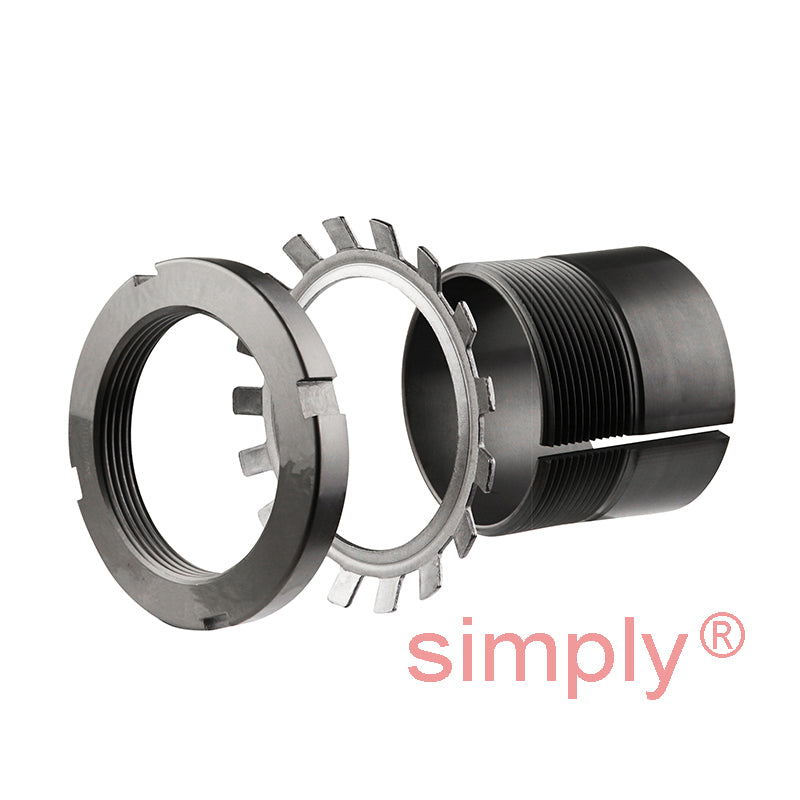

SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft
SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
2+
CHF 27.25
5+
CHF 25.72
10+
CHF 25.41
20+
CHF 25.10
49+
CHF 24.80
74+
CHF 24.49
99+
CHF 22.96
199+
CHF 22.65
249+
CHF 22.35
499+
CHF 22.04
999+
CHF 21.43
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 38mm
- Width:
- 29mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 20mm |
| d | 25mm |
| d3 | 38mm |
| B1 | 29mm |
| B2 | 9mm |
| G | Thread 25x1.5mm |
| Weight | 0.071 kg |
| --- | Assembly Parts |
| Sleeve | H305C |
| Nut | KM5 |
| Washer | MB5C |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2205K-2RS+taper>2205K-2RS</a> |
