SKU: H306E-SKF

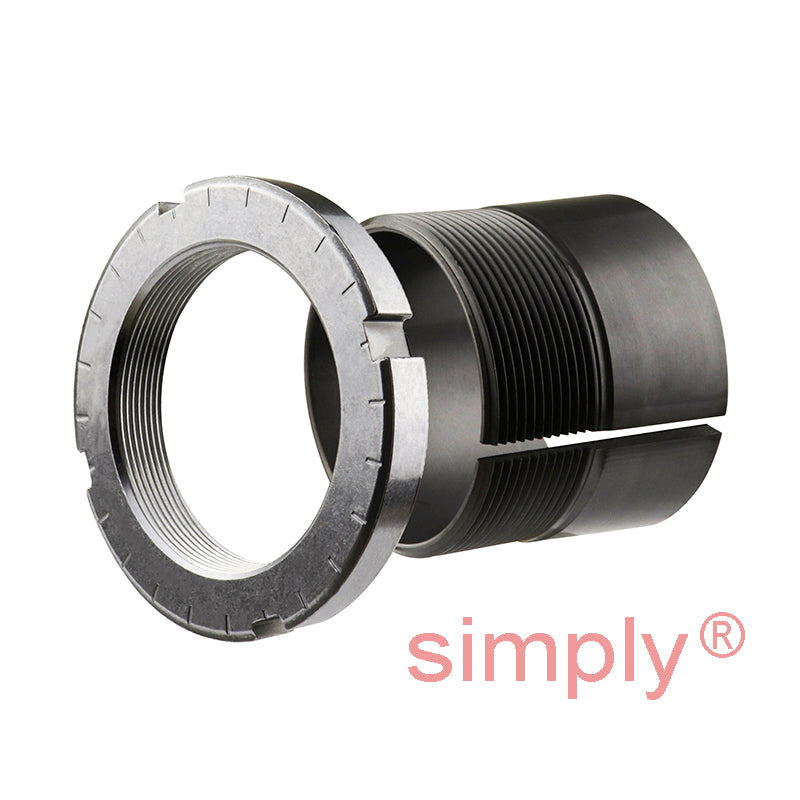

SKF H306E Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
SKF H306E Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
2+
CHF 59.10
5+
CHF 55.78
10+
CHF 55.11
20+
CHF 54.45
49+
CHF 53.78
74+
CHF 53.12
99+
CHF 49.80
199+
CHF 49.14
249+
CHF 48.47
499+
CHF 47.81
999+
CHF 46.48
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 45mm
- Width:
- 31mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 25mm |
| d | 30mm |
| d3 | 45mm |
| B1 | 31mm |
| B2 | 10.5mm |
| G | Thread 30x1.5mm |
| Weight | 0.11 kg |
| --- | Assembly Parts |
| Sleeve | H306E |
| Nut | KMFE6 |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2206KTN9+taper>C2206KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2206K+taper>C2206K</a> |
