SKU: H307E-SKF

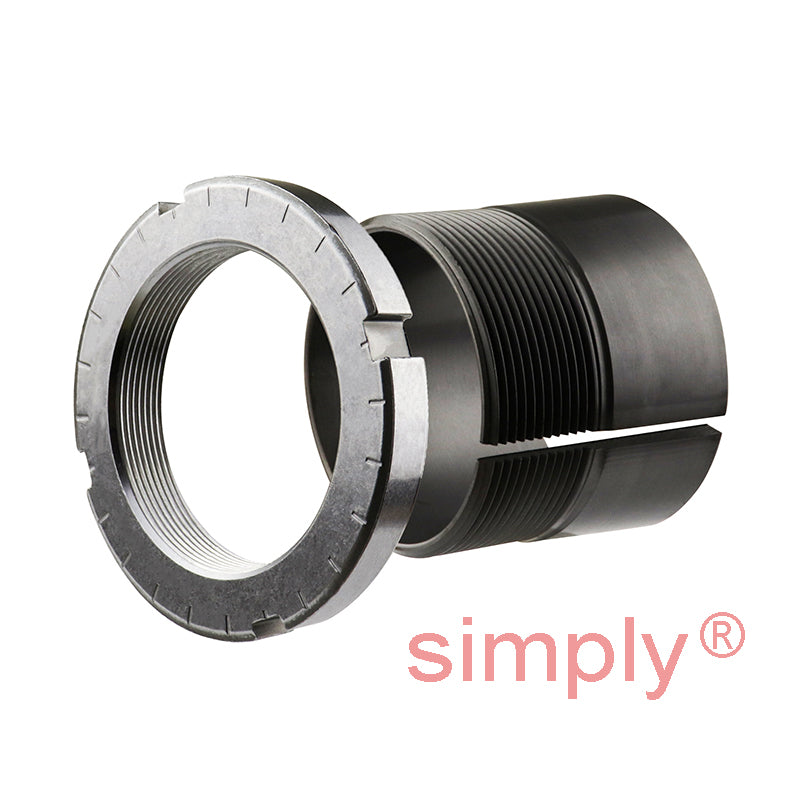

SKF H307E Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
SKF H307E Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
In stock
Price Break
2+
CHF 38.58
5+
CHF 36.41
10+
CHF 35.97
20+
CHF 35.54
49+
CHF 35.11
74+
CHF 34.67
99+
CHF 32.51
199+
CHF 32.07
249+
CHF 31.64
499+
CHF 31.21
999+
CHF 30.34
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 35mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 30mm |
| d | 35mm |
| d3 | 52mm |
| B1 | 35mm |
| B2 | 11.5mm |
| G | Thread 35x1.5mm |
| Weight | 0.15 kg |
| --- | Assembly Parts |
| Sleeve | H307E |
| Nut | KMFE7 |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2207KTN9+taper>C2207KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2207K+taper>C2207K</a> |
