• RHP H308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
1 1

SKU: H308.RHP

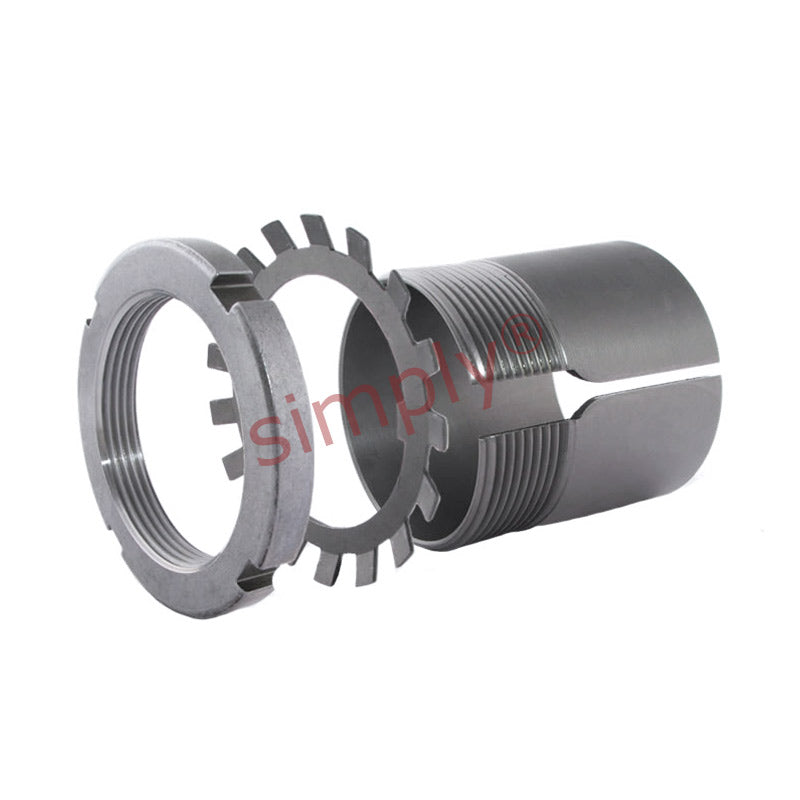

RHP H308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft

RHP H308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
CHF 9.00 ex VAT
CHF 9.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 6.95
20+ CHF 6.56
30+ CHF 6.48
40+ CHF 6.40
50+ CHF 6.33
75+ CHF 6.25
100+ CHF 5.86
200+ CHF 5.78
250+ CHF 5.70
500+ CHF 5.62
1000+ CHF 5.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Technical
--- Dimensions
d1 35mm
d 40mm
d3 58mm
B1 36mm
B2 10mm
G Thread 40x1.5mm
Weight 0.17 kg
--- Assembly Parts
Sleeve H308
Nut KM8
Washer MB8
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2208K+taper+self+open>2208K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1308K+taper+self+open>1308K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22208K+taper>22208K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21308K+taper>21308K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2208K+taper>C2208K</a>
