SKU: H310C-SKF

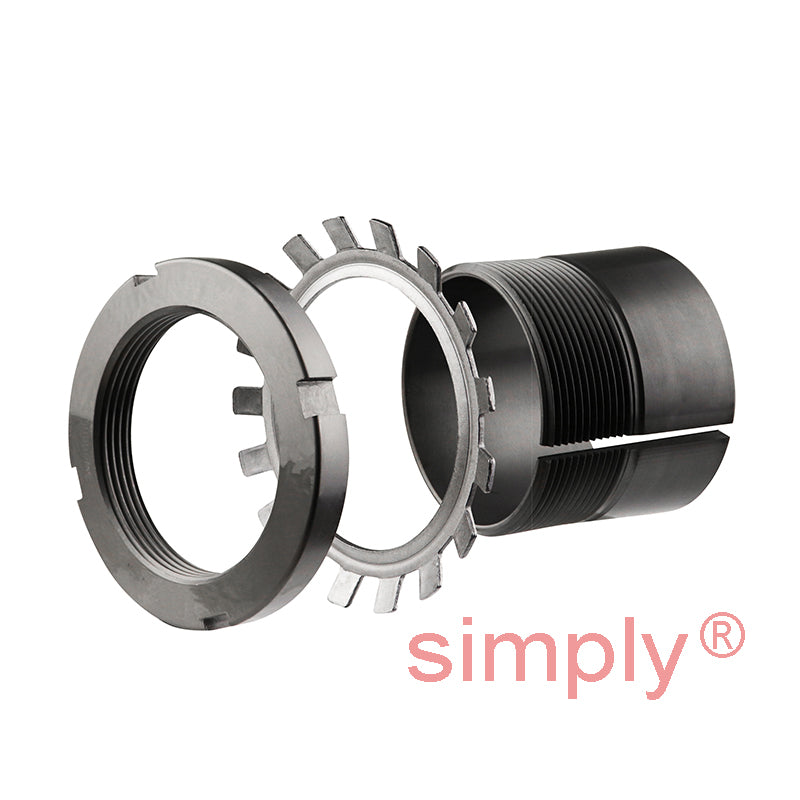

SKF H310C Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft

Name: SKF H310C Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
Brand: SKF
SKU: H310C-SKF
Price: 40.00 CHF
Availability: InStock

CHF 40.00 ex VAT

Sale Sold out

In stock

Price Break

2+ CHF 31.77

5+ CHF 29.99

10+ CHF 29.63

20+ CHF 29.27

49+ CHF 28.91

74+ CHF 28.56

99+ CHF 26.77

199+ CHF 26.42

249+ CHF 26.06

499+ CHF 25.70

999+ CHF 24.99

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 70mm
Width:: 42mm

Technical

---	Dimensions
d1	45mm
d	50mm
d3	70mm
B1	42mm
B2	13mm
G	Thread 50x1.5mm
Weight	0.27 kg
---	Assembly Parts
Sleeve	H310C
Nut	KM10
Washer	MB10C
Hydraulic nut	HMV10E
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2210K-2RS+taper>2210K-2RS</a>
