SKU: H311-FAG

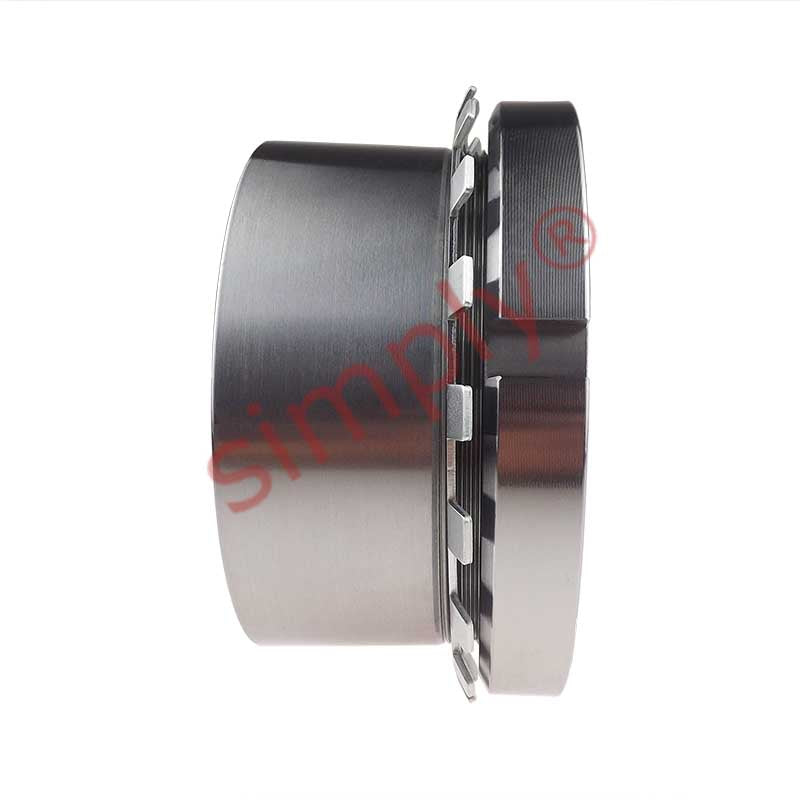

FAG H311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
FAG H311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.63
19+
CHF 18.53
29+
CHF 18.31
39+
CHF 18.09
49+
CHF 17.87
74+
CHF 17.65
99+
CHF 16.55
199+
CHF 16.32
249+
CHF 16.10
499+
CHF 15.88
999+
CHF 15.44
Share this product
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 45mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 50mm |
| d | 55mm |
| d3 | 75mm |
| B1 | 45mm |
| B2 | 12.5mm |
| G | Thread 55x2mm |
| Weight | 0.336 kg |
| --- | Assembly Parts |

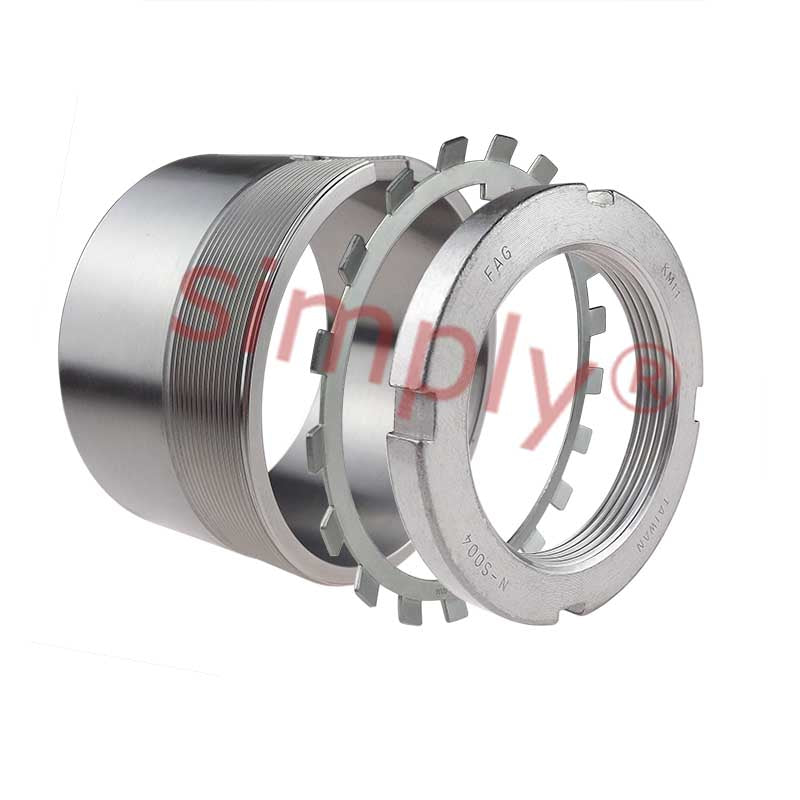

| Sleeve | H311 |
| Nut | KM11 |
| Washer | MB11 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2211K+taper+self+open>2211K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1311K+taper+self+open>1311K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22211K+taper>22211K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21311K+taper>21311K</a> |
