SKU: H313-FAG

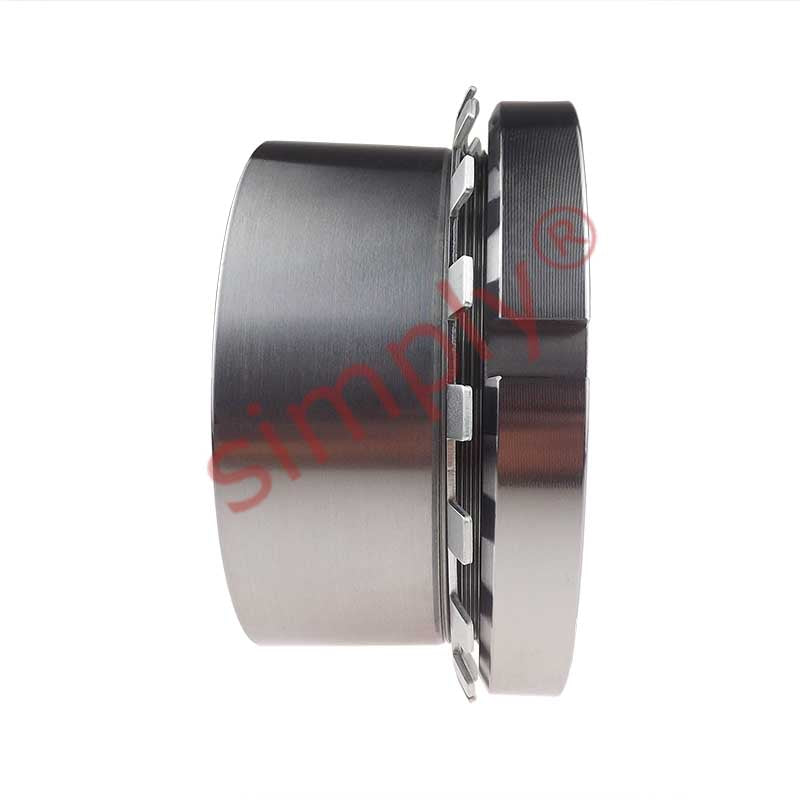

FAG H313 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
FAG H313 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
10+
CHF 22.64
19+
CHF 21.37
29+
CHF 21.12
39+
CHF 20.86
49+
CHF 20.61
74+
CHF 20.35
99+
CHF 19.08
199+
CHF 18.83
249+
CHF 18.57
499+
CHF 18.32
999+
CHF 17.81
Share this product
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 65mm |
| d3 | 85mm |
| B1 | 50mm |
| B2 | 13.5mm |
| G | Thread 65x2mm |
| Weight | 0.443 kg |

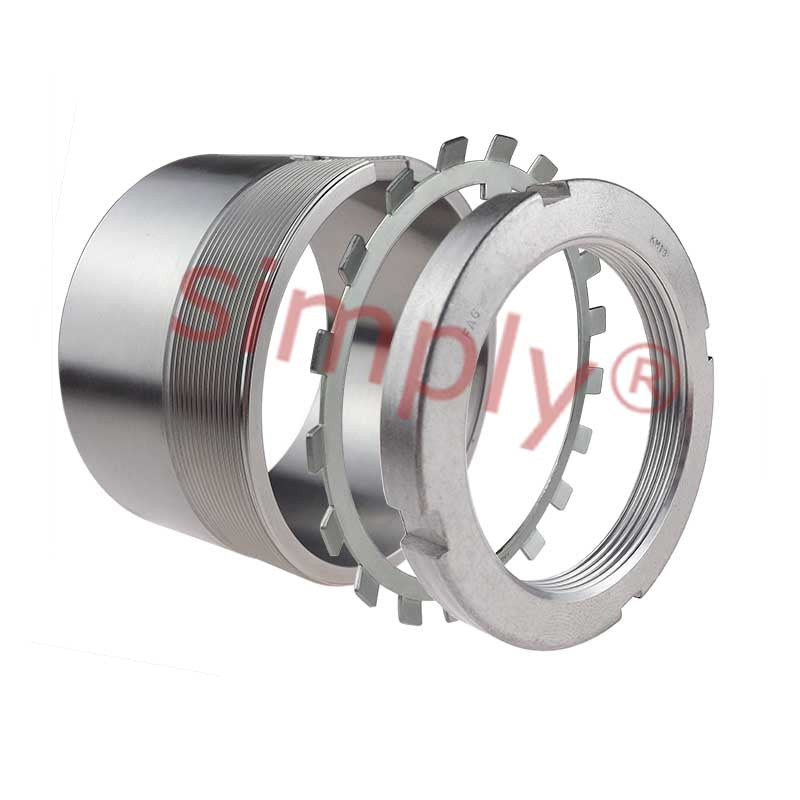

| --- | Assembly Parts |
| Sleeve | H313 |
| Nut | KM13 |
| Washer | MB13 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2213K+taper+self+open>2213K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1313K+taper+self+open>1313K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22213K+taper>22213K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21213K+taper>21213K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213K+taper>C2213K</a> |
