SKU: H313C-SKF

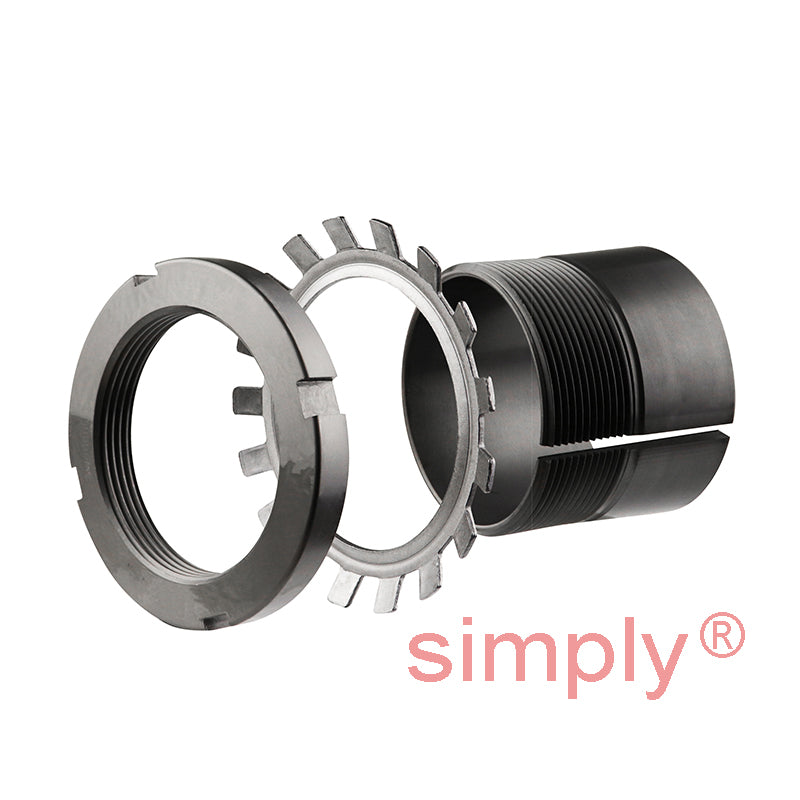

SKF H313C Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

Name: SKF H313C Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Brand: SKF
SKU: H313C-SKF
Price: 101.00 CHF
Availability: InStock

CHF 101.00 ex VAT

Sale Sold out

In stock

Price Break

2+ CHF 80.33

5+ CHF 75.82

10+ CHF 74.92

20+ CHF 74.01

49+ CHF 73.11

74+ CHF 72.21

99+ CHF 67.70

199+ CHF 66.79

249+ CHF 65.89

499+ CHF 64.99

999+ CHF 63.18

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 85mm
Width:: 50mm

Technical

---	Dimensions
d1	60mm
d	65mm
d3	85mm
B1	50mm
B2	14.5mm
G	Thread 65x2mm
Weight	0.42 kg
---	Assembly Parts
Sleeve	H313C
Nut	KM13
Washer	MB13C
Hydraulic nut	HMV13E
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22213K-2RS+taper>22213K-2RS</a>
