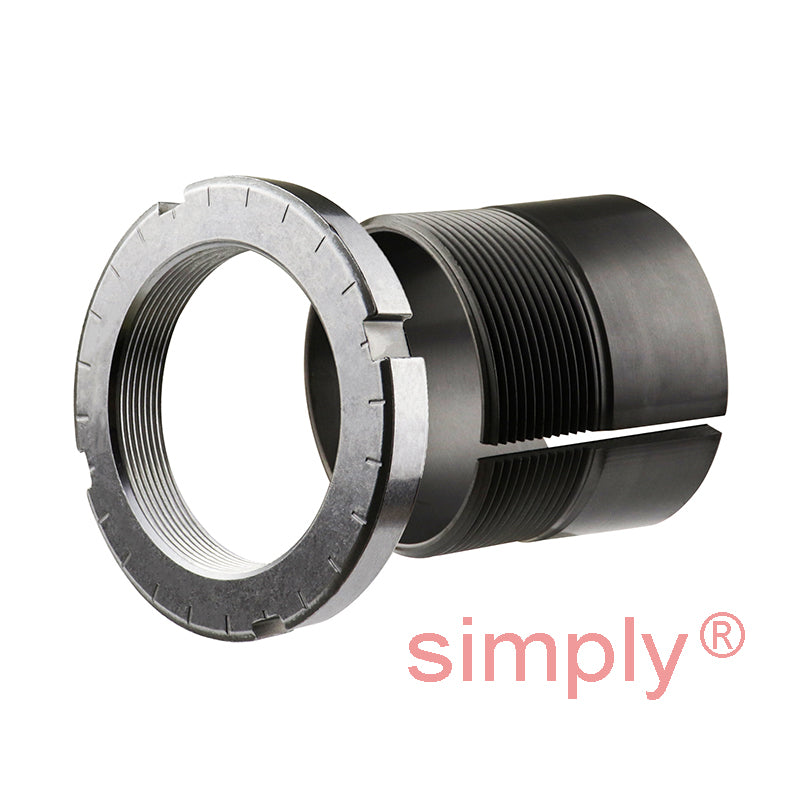

• SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
1 1

SKU: H313E-SKF

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
CHF 63.00 ex VAT
CHF 63.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 49.86
5+ CHF 47.06
10+ CHF 46.50
20+ CHF 45.94
49+ CHF 45.38
74+ CHF 44.82
99+ CHF 42.02
199+ CHF 41.46
249+ CHF 40.90
499+ CHF 40.34
999+ CHF 39.22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
50mm
Technical
--- Dimensions
d1 60mm
d 65mm
d3 85mm
B1 50mm
B2 15mm
G Thread 65x2mm
Weight 0.43 kg
--- Assembly Parts
Sleeve H313E
Nut KMFE13
Hydraulic nut HMV13E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213KTN9+taper>C2213KTN9</a>
