SKU: H315E-SKF

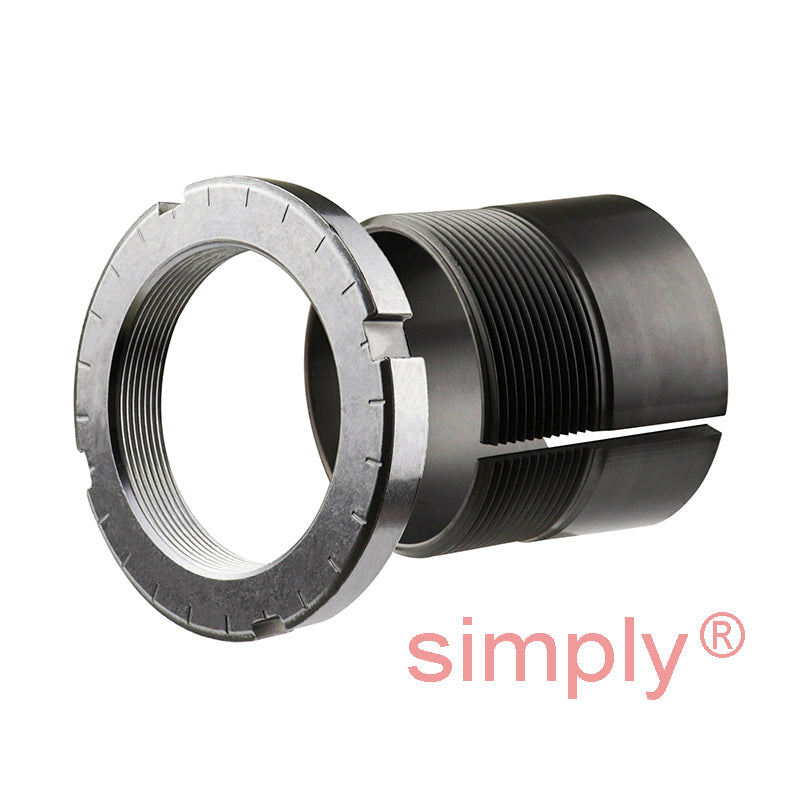

SKF H315E Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
SKF H315E Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
Regular price
CHF 72.00
ex VAT
Regular price
Sale price
CHF 72.00
ex VAT
In stock
Price Break
2+
CHF 57.30
5+
CHF 54.08
10+
CHF 53.44
20+
CHF 52.79
49+
CHF 52.15
74+
CHF 51.51
99+
CHF 48.29
199+
CHF 47.64
249+
CHF 47.00
499+
CHF 46.36
999+
CHF 45.07
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 98mm
- Width:
- 55mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 65mm |
| d | 75mm |
| d3 | 98mm |
| B1 | 55mm |
| B2 | 16mm |
| G | Thread 75x2mm |
| Weight | 0.8 kg |
| --- | Assembly Parts |
| Sleeve | H315E |
| Nut | KMFE15 |
| Hydraulic nut | HMV15E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2215K+taper>C2215K</a> |
