SKU: H316E-SKF

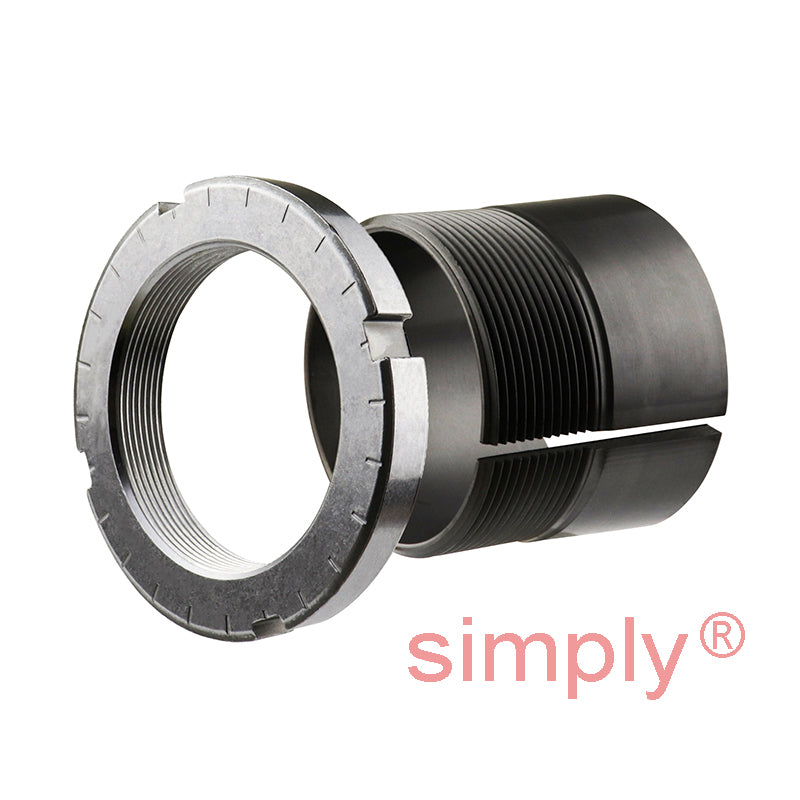

SKF H316E Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
SKF H316E Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
Regular price
CHF 77.90
ex VAT
Regular price
Sale price
CHF 77.90
ex VAT
In stock
Price Break
10+
CHF 69.33
19+
CHF 65.44
29+
CHF 64.66
39+
CHF 63.88
49+
CHF 63.10
74+
CHF 62.32
99+
CHF 58.43
199+
CHF 57.65
249+
CHF 56.87
499+
CHF 56.09
999+
CHF 54.53
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 105mm
- Width:
- 59mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 70mm |
| d | 80mm |
| d3 | 105mm |
| B1 | 59mm |
| B2 | 18mm |
| G | Thread 80x2mm |
| Weight | 1.01 kg |
| --- | Assembly Parts |
| Sleeve | H316E |
| Nut | KMFE16 |
| Hydraulic nut | HMV16E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2216K+taper>C2216K</a> |
