• SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
1 1

SKU: H317E-SKF

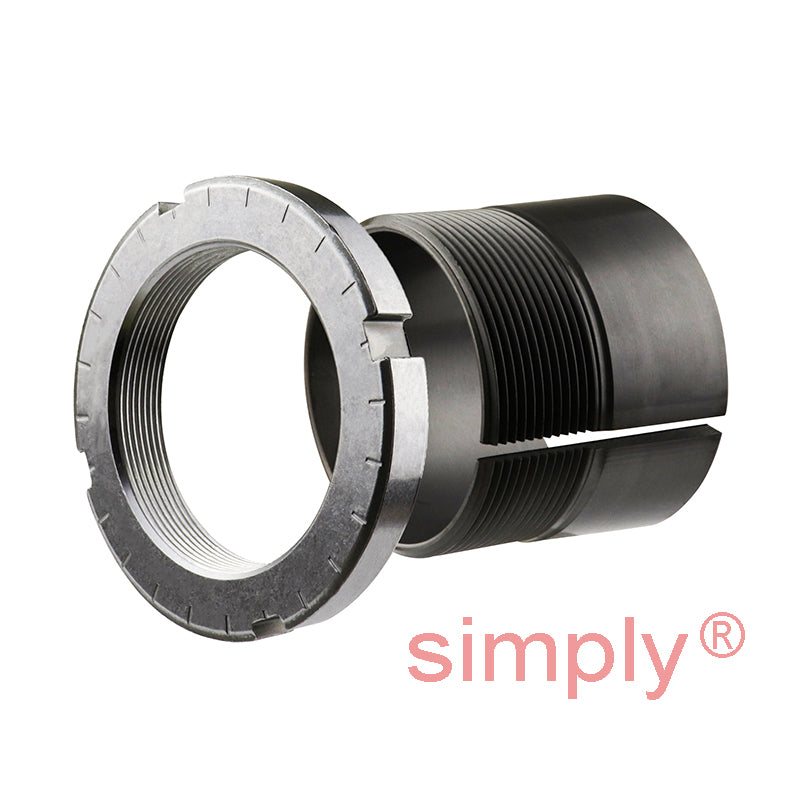

SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft

SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
CHF 83.00 ex VAT
CHF 83.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 66.08
5+ CHF 62.36
10+ CHF 61.62
20+ CHF 60.88
49+ CHF 60.14
74+ CHF 59.39
99+ CHF 55.68
199+ CHF 54.94
249+ CHF 54.20
499+ CHF 53.45
999+ CHF 51.97
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
75mm
Outside Diameter:
110mm
Width:
63mm
Technical
--- Dimensions
d1 75mm
d 85mm
d3 110mm
B1 63mm
B2 19mm
G Thread 85x2mm
Weight 1.17 kg
--- Assembly Parts
Sleeve H317E
Nut KMFE17
Hydraulic nut HMV17E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2217K+taper>C2217K</a>
