SKU: H318E-SKF

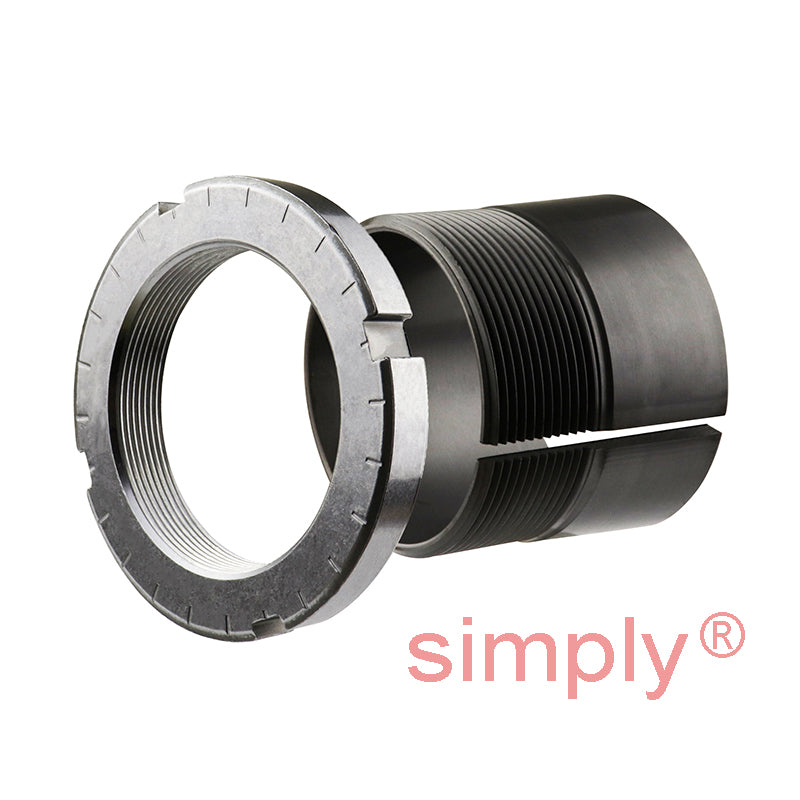

SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft

Name: SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
Brand: SKF
SKU: H318E-SKF
Price: 95.00 CHF
Availability: InStock

CHF 95.00 ex VAT

Sale Sold out

In stock

Price Break

2+ CHF 74.96

5+ CHF 70.75

10+ CHF 69.91

20+ CHF 69.07

49+ CHF 68.22

74+ CHF 67.38

99+ CHF 63.17

199+ CHF 62.33

249+ CHF 61.49

499+ CHF 60.64

999+ CHF 58.96

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 120mm
Width:: 65mm

Technical

---	Dimensions
d1	80mm
d	90mm
d3	120mm
B1	65mm
B2	19mm
G	Thread 90x2mm
Weight	1.43 kg
---	Assembly Parts
Sleeve	H318E
Nut	KMFE18
Hydraulic nut	HMV18E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2218K+taper>C2218K</a>
