SKU: H319-FAG

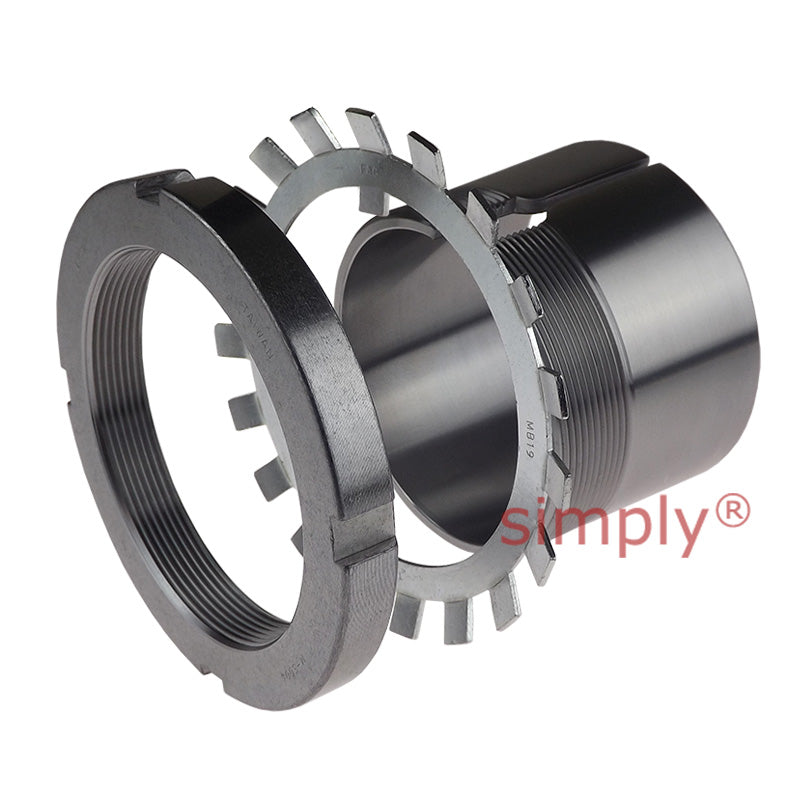

FAG H319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
FAG H319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
Regular price
CHF 70.00
ex VAT
Regular price
Sale price
CHF 70.00
ex VAT
In stock
Price Break
10+
CHF 55.41
19+
CHF 52.30
29+
CHF 51.68
39+
CHF 51.05
49+
CHF 50.43
74+
CHF 49.81
99+
CHF 46.70
199+
CHF 46.07
249+
CHF 45.45
499+
CHF 44.83
999+
CHF 43.58
Share this product
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 68mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 85mm |
| d | 95mm |
| d3 | 125mm |
| B1 | 68mm |
| B2 | 19mm |
| G | Thread 95x2mm |
| Weight | 1.4 kg |
| --- | Assembly Parts |
| Sleeve | H319 |
| Nut | KM19 |
| Washer | MB19 |
| Hydraulic nut | HMV19E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2219K+taper+self+open>2219K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1319K+taper+self+open>1319K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22219K+taper>22219K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21319K+taper>21319K</a> |
