SKU: H320E-SKF

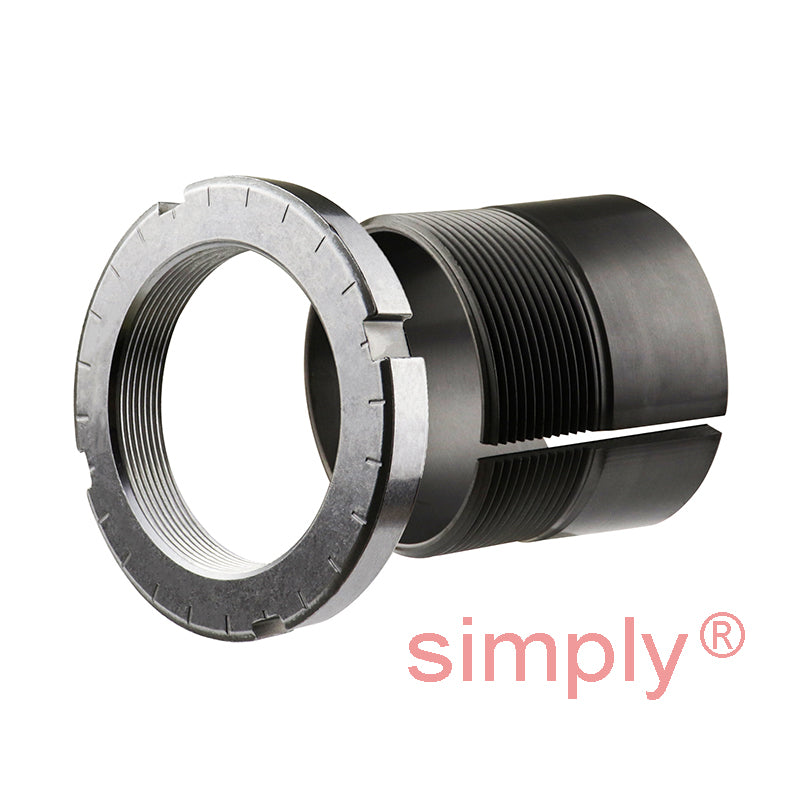

SKF H320E Adaptor Sleeve with Lock Nut and Locking Device for 90mm Shaft
SKF H320E Adaptor Sleeve with Lock Nut and Locking Device for 90mm Shaft
Regular price
CHF 115.00
ex VAT
Regular price
Sale price
CHF 115.00
ex VAT
In stock
Price Break
2+
CHF 91.62
5+
CHF 86.47
10+
CHF 85.44
20+
CHF 84.41
49+
CHF 83.38
74+
CHF 82.35
99+
CHF 77.20
199+
CHF 76.17
249+
CHF 75.15
499+
CHF 74.12
999+
CHF 72.06
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 130mm
- Width:
- 71mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 90mm |
| d | 100mm |
| d3 | 130mm |
| B1 | 71mm |
| B2 | 21mm |
| G | Thread 100x2mm |
| Weight | 1.72 kg |
| --- | Assembly Parts |
| Sleeve | H320E |
| Nut | KMFE20 |
| Hydraulic nut | HMV20E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2220K+taper>C2220K</a> |
