SKU: H322E-SKF

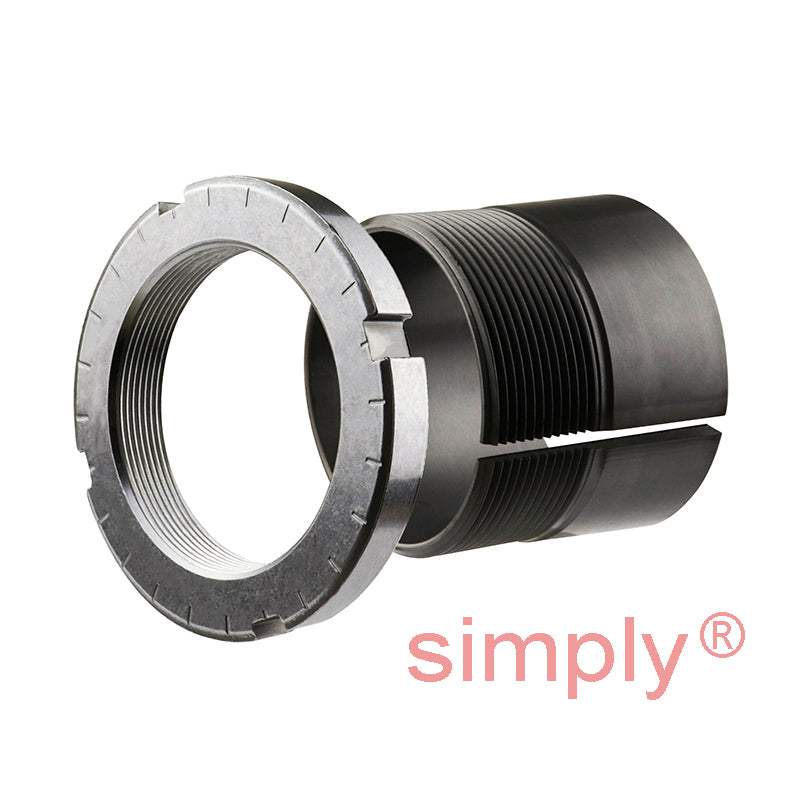

SKF H322E Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
SKF H322E Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
Regular price
CHF 158.00
ex VAT
Regular price
Sale price
CHF 158.00
ex VAT
In stock
Price Break
2+
CHF 125.21
5+
CHF 118.18
10+
CHF 116.77
20+
CHF 115.36
49+
CHF 113.96
74+
CHF 112.55
99+
CHF 105.52
199+
CHF 104.11
249+
CHF 102.70
499+
CHF 101.29
999+
CHF 98.48
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 145mm
- Width:
- 77mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 100mm |
| d | 110mm |
| d3 | 145mm |
| B1 | 77mm |
| B2 | 21.5mm |
| G | Thread 110x2mm |
| Weight | 2.11 kg |
| --- | Assembly Parts |
| Sleeve | H322E |
| Nut | KMFE22 |
| Hydraulic nut | HMV22E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3022K+taper>C3022K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2222K+taper>C2222K</a> |
