SKU: H715334/H715311-TIM

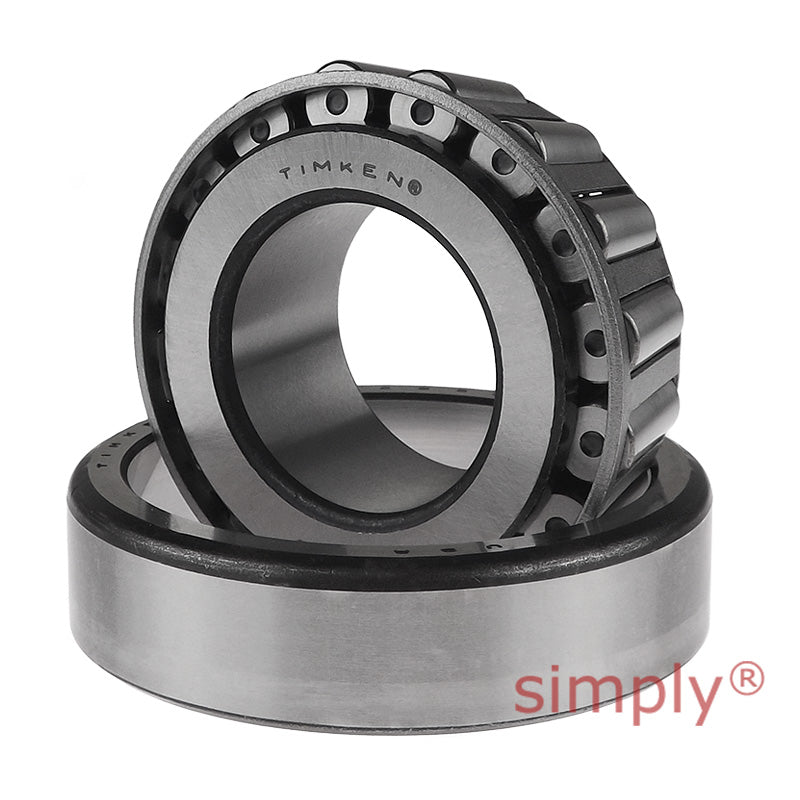

Timken H715334/H715311 TS Single-Row Taper Roller Bearing 2.4375x5.375x1.8125 inch
Timken H715334/H715311 TS Single-Row Taper Roller Bearing 2.4375x5.375x1.8125 inch
Regular price
CHF 299.00
ex VAT
Regular price
Sale price
CHF 299.00
ex VAT
In stock
Price Break
10+
CHF 237.82
20+
CHF 224.46
30+
CHF 221.78
40+
CHF 219.11
50+
CHF 216.44
75+
CHF 213.77
100+
CHF 200.41
200+
CHF 197.74
250+
CHF 195.06
500+
CHF 192.39
1000+
CHF 187.05
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 136.53mm = 5.375 (5-3/8) inch
- Width:
- 46.04mm = 1.813 (1-13/16) inch
Technical
Technical
| d | 61.912mm = 2.4375 inch |
|---|---|
| D | 136.525mm = 5.375 inch |
| T | 46.038mm = 1.8125 inch |
| Dynamic (1) C1 | 249000N |
| Factors (5) e | 0.47 |
| Factors (5) Y | 1.27 |
| Dynamic (2) C90 | 64600N |
| Dynamic (2) Ca90 | 52300N |
| Factors (5) K | 1.24 |
| Static C0 | 405000N |
| Bearing B | 46.038mm = 1.8125 inch |
| Bearing C | 36.512mm = 1.4375 inch |
| Bearing a(3) | -8.6mm = -0.34 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 81mm = 3.19 inch |
| Shaft backing shoulder diameter db | 87mm = 3.43 inch |
| Housing backing shoulder diameter r(4) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Da | 132mm = 5.2 inch |
| Housing backing shoulder diameter Db | 118mm = 4.65 inch |
| Cage Aa | 4.2mm = 0.16 inch |
| Cage Ab | 2mm = 0.08 inch |
| G1 | 147 |
| G2 | 32.8 |
| Cg | 0.0993 |
