SKU: HC201

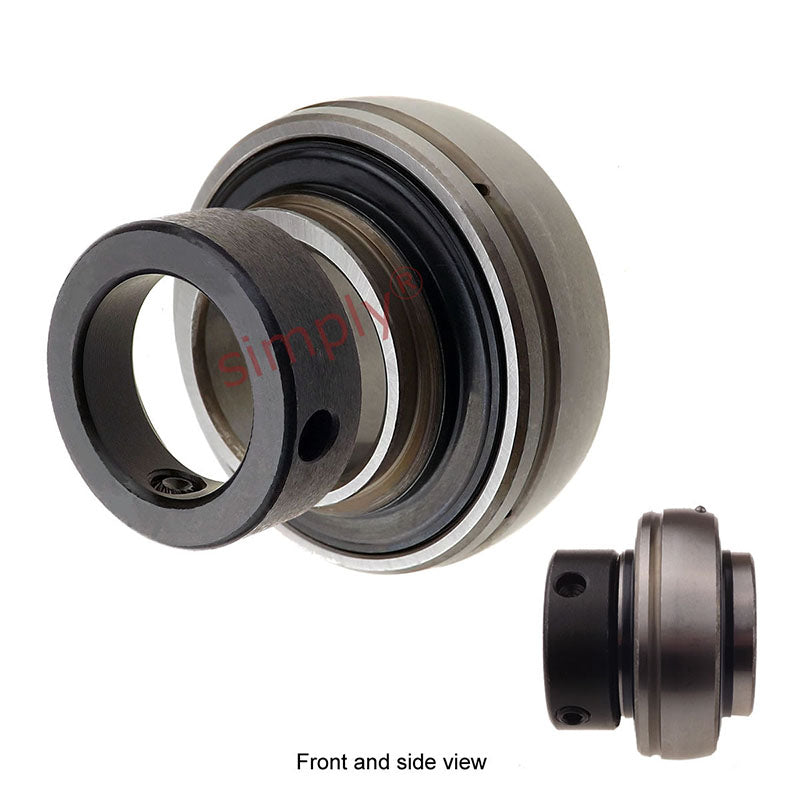

HC201 Eccentric Collar Full Width Insert 12mm Bore 47mm Outside Dia
HC201 Eccentric Collar Full Width Insert 12mm Bore 47mm Outside Dia
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
Equivalent to: NA201
In stock
Price Break
3+
CHF 13.26
4+
CHF 12.51
9+
CHF 12.36
19+
CHF 12.21
49+
CHF 12.07
99+
CHF 11.92
499+
CHF 11.17
999+
CHF 11.02
1999+
CHF 10.87
2999+
CHF 10.72
4999+
CHF 10.43
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA201
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- HC
Technical
Technical
| d | 12mm |
|---|---|
| D | 47mm |
| B1 | 43.7mm |
| B | 34.2mm |
| C | 17mm |
| s | 17.1mm |
| ds | M6x1 |
| G | 4.8mm |
| B5 | 13.5mm |
| d3 | 33.3mm |
| F | 3.7mm |
| Dynamic load | 1305 kgf |
| Static load | 678 kgf |
| Weight | 0.29 kg |
