SKU: HC208-24

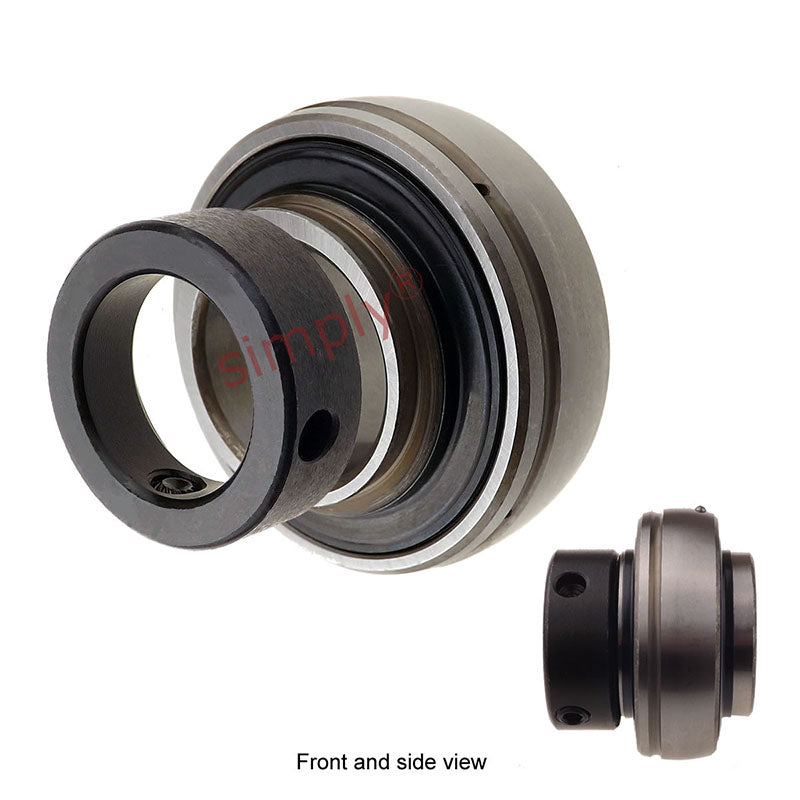

HC208-24 Eccentric Collar Full Width Insert 1-1/2 inch Bore 80mm Outside Dia
HC208-24 Eccentric Collar Full Width Insert 1-1/2 inch Bore 80mm Outside Dia
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
Equivalent to: NA208-24
In stock
Price Break
3+
CHF 14.98
4+
CHF 14.14
9+
CHF 13.97
19+
CHF 13.81
49+
CHF 13.64
99+
CHF 13.47
499+
CHF 12.63
999+
CHF 12.46
1999+
CHF 12.29
2999+
CHF 12.12
4999+
CHF 11.79
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA208-24
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- HC
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| B1 | 56.3mm |
| B | 42.8mm |
| C | 21mm |
| s | 21.4mm |
| ds | 15/16 x 24 UNF |
| G | 6.8mm |
| B5 | 18.3mm |
| d3 | 60.3mm |
| F | 6.2mm |
| Dynamic load | 3008 kgf |
| Static load | 1846 kgf |
| Weight | 0.84 kg |
