SKU: HC213

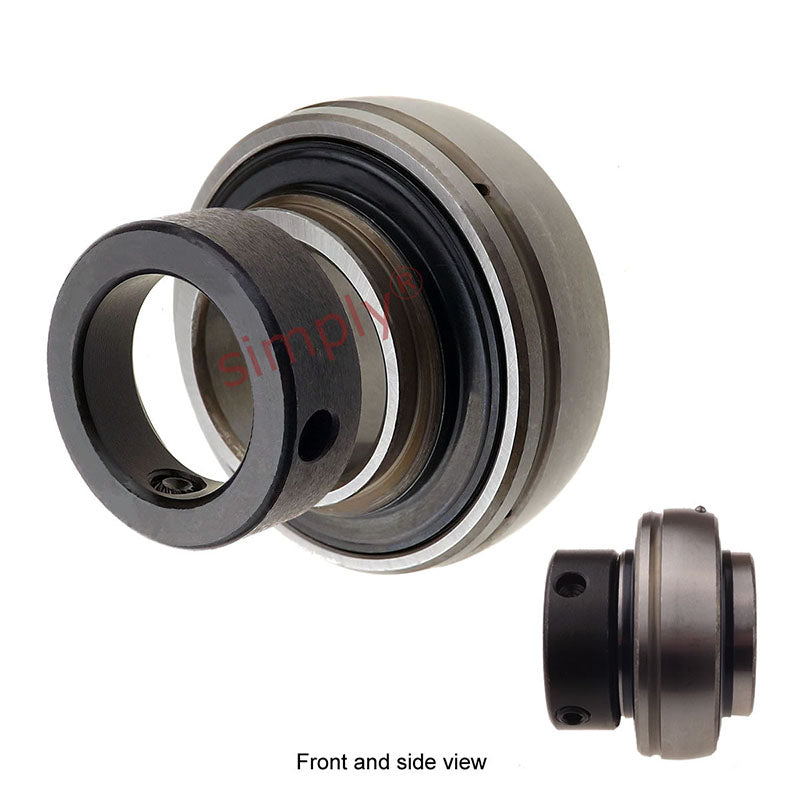

HC213 Eccentric Collar Full Width Insert 65mm Bore 120mm Outside Dia
HC213 Eccentric Collar Full Width Insert 65mm Bore 120mm Outside Dia
Regular price
CHF 64.87
ex VAT
Regular price
Sale price
CHF 64.87
ex VAT
Equivalent to: NA213
In stock
Price Break
10+
CHF 57.73
19+
CHF 54.49
29+
CHF 53.84
39+
CHF 53.19
49+
CHF 52.54
74+
CHF 51.90
99+
CHF 48.65
199+
CHF 48.00
249+
CHF 47.36
499+
CHF 46.71
999+
CHF 45.41
Couldn't load pickup availability
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA213
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- HC
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B1 | 85.7mm |
| B | 68.6mm |
| C | 28mm |
| s | 34.1mm |
| ds | M10x1 |
| G | 8.5mm |
| B5 | 23.5mm |
| d3 | 86mm |
| F | 8.5mm |
| Dynamic load | 5863 kgf |
| Static load | 4079 kgf |
| Weight | 2.41 kg |
