SKU: HC214

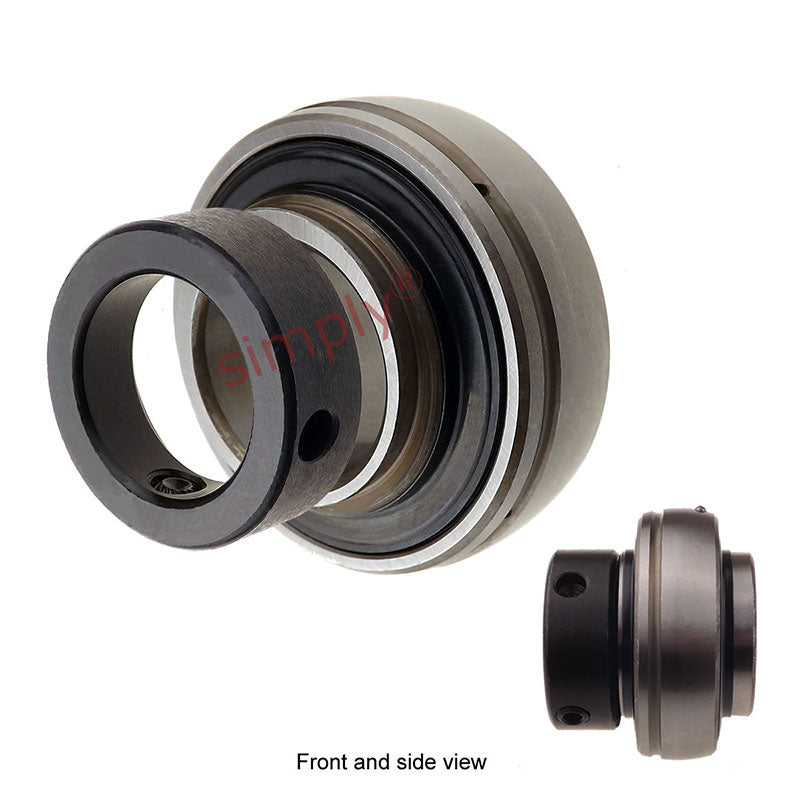

HC214 Eccentric Collar Full Width Insert 70mm Bore 125mm Outside Dia
HC214 Eccentric Collar Full Width Insert 70mm Bore 125mm Outside Dia
Regular price
CHF 81.00
ex VAT
Regular price
Sale price
CHF 81.00
ex VAT
Equivalent to: NA214
In stock
Price Break
3+
CHF 64.17
4+
CHF 60.56
9+
CHF 59.84
19+
CHF 59.12
49+
CHF 58.40
99+
CHF 57.68
499+
CHF 54.07
999+
CHF 53.35
1999+
CHF 52.63
2999+
CHF 51.91
4999+
CHF 50.47
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA214
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- HC
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B1 | 85.7mm |
| B | 68.6mm |
| C | 29mm |
| s | 34.1mm |
| ds | M10x1 |
| G | 8.5mm |
| B5 | 23.5mm |
| d3 | 90mm |
| F | 8.9mm |
| Dynamic load | 6200 kgf |
| Static load | 4589 kgf |
| Weight | 2.55 kg |
