SKU: HC215

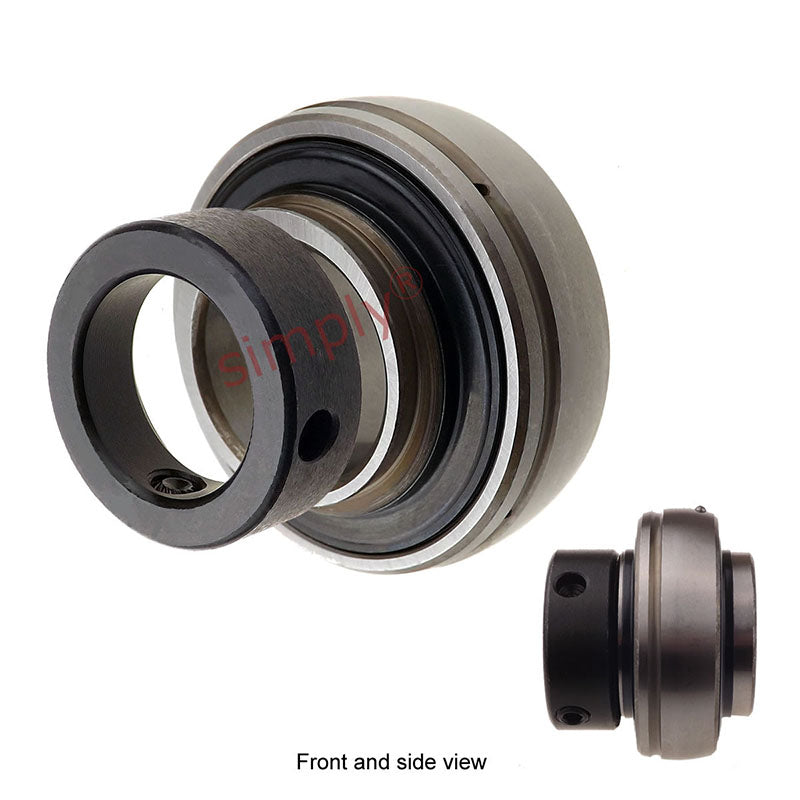

HC215 Eccentric Collar Full Width Insert 75mm Bore 130mm Outside Dia
HC215 Eccentric Collar Full Width Insert 75mm Bore 130mm Outside Dia
Regular price
CHF 93.00
ex VAT
Regular price
Sale price
CHF 93.00
ex VAT
Equivalent to: NA215
In stock
Price Break
3+
CHF 73.61
4+
CHF 69.47
9+
CHF 68.64
19+
CHF 67.82
49+
CHF 66.99
99+
CHF 66.16
499+
CHF 62.03
999+
CHF 61.20
1999+
CHF 60.37
2999+
CHF 59.55
4999+
CHF 57.89
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA215
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- HC
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B1 | 92.1mm |
| B | 75mm |
| C | 30mm |
| s | 37.3mm |
| ds | M10x1 |
| G | 8.5mm |
| B5 | 23.5mm |
| d3 | 102mm |
| F | 9.2mm |
| Dynamic load | 6730 kgf |
| Static load | 5048 kgf |
| Weight | 2.84 kg |
