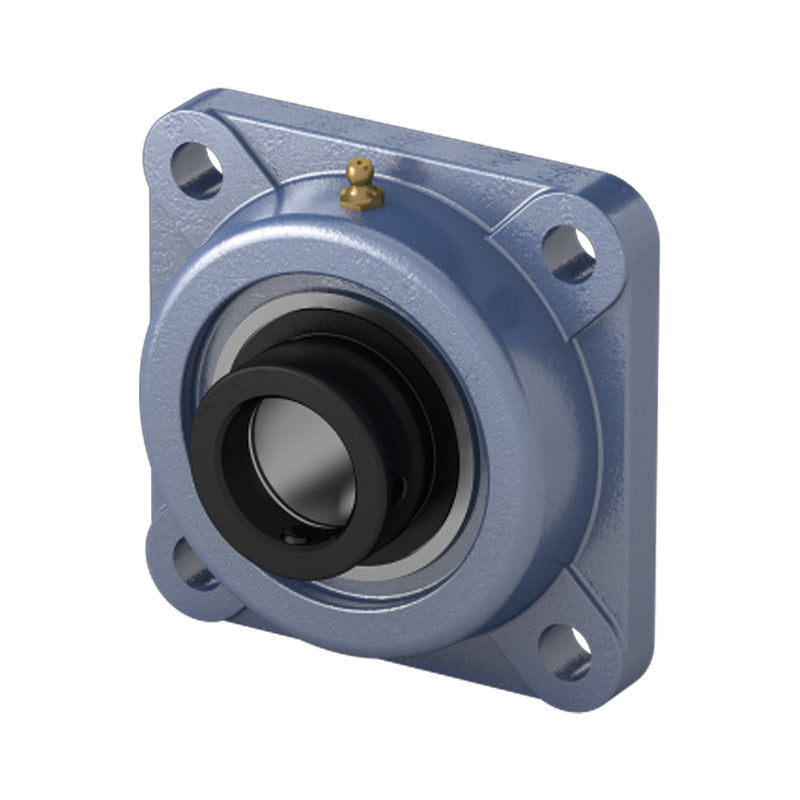

HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert

HCF200 Series Normal Duty 4 Bolt Square Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the square cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be fully removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

45mm

Style:

HCF

Bolt Hole Centres:

105mm
