SKU: HCFC211-32

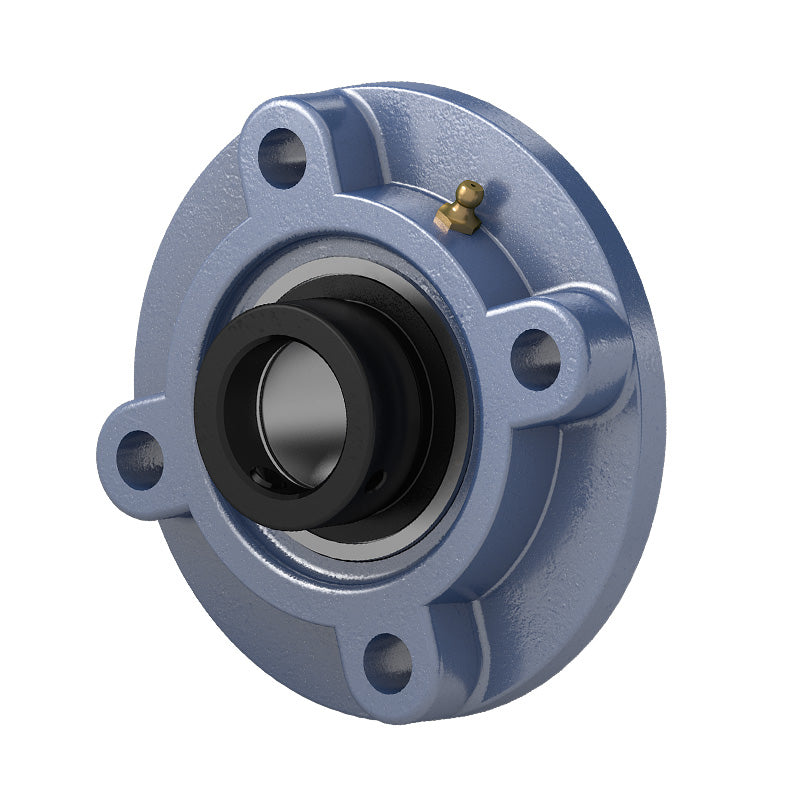

HCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Eccentric Collar Insert
HCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Eccentric Collar Insert
Regular price
CHF 50.72
ex VAT
Regular price
Sale price
CHF 50.72
ex VAT
In stock
Price Break
10+
CHF 45.14
19+
CHF 42.60
29+
CHF 42.10
39+
CHF 41.59
49+
CHF 41.08
74+
CHF 40.58
99+
CHF 38.04
199+
CHF 37.53
249+
CHF 37.03
499+
CHF 36.52
999+
CHF 35.50
Couldn't load pickup availability
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- HCFC
- Pitch Circle Diameter:
- 106.36mm = 4.187 (4-3/16) inch
Technical
Technical
| d | 2 inch |
|---|---|
| a | 7-9/32 inch |
| p | 5-29/32 inch |
| (e) | 4-3/16 inch |
| i | 33/64 inch |
| s | 3/4 inch |
| j | 15/32 inch |
| k | 19/32 inch |
| g | 1-7/32 inch |
| f | 4.9213 inch |
| z | 2-15/64 inch |
| B1 | 2.811 inch |
| n | 1.094 inch |
| Bolt size | 5/8 inch |
| Bearing no | HC211-32 |
| Housing no | FC211 |
| Weight | 4.43 kg |
