SKU: HCFL205

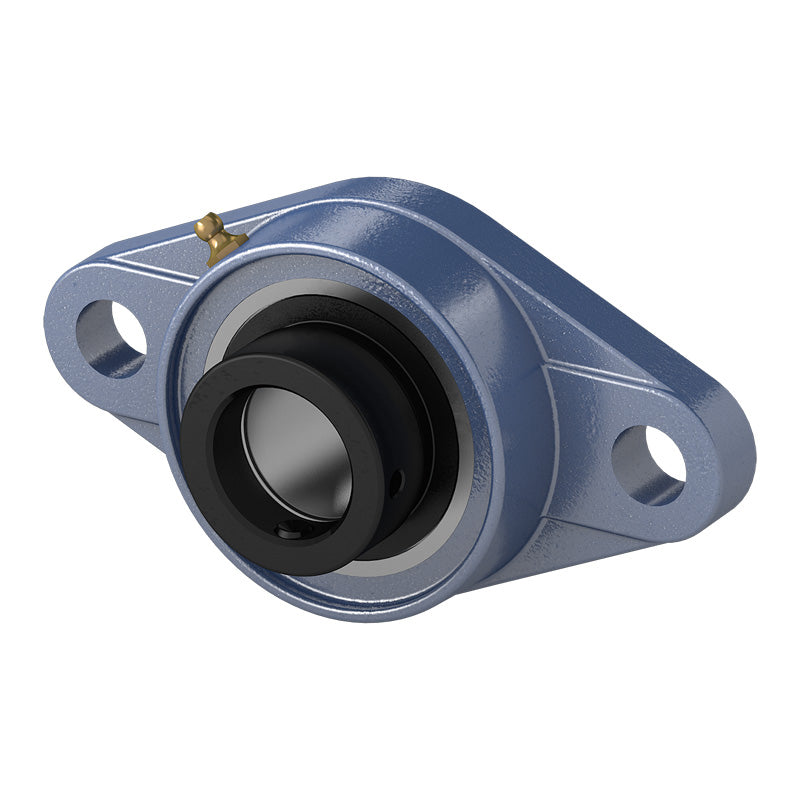

HCFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Eccentric Collar Insert
HCFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Eccentric Collar Insert
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
3+
CHF 8.55
4+
CHF 8.07
9+
CHF 7.98
19+
CHF 7.88
49+
CHF 7.78
99+
CHF 7.69
499+
CHF 7.21
999+
CHF 7.11
1999+
CHF 7.02
2999+
CHF 6.92
4999+
CHF 6.73
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- HCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 130mm |
| e | 99mm |
| i | 16mm |
| g | 13mm |
| l | 27mm |
| s | 16mm |
| b | 68mm |
| z | 42.9mm |
| B1 | 44.4mm |
| n | 17.5mm |
| Bolt size | M14 |
| Bearing no | HC205 |
| Housing no | FL205 |
| Weight | 0.63 kg |
