SKU: HCFL207

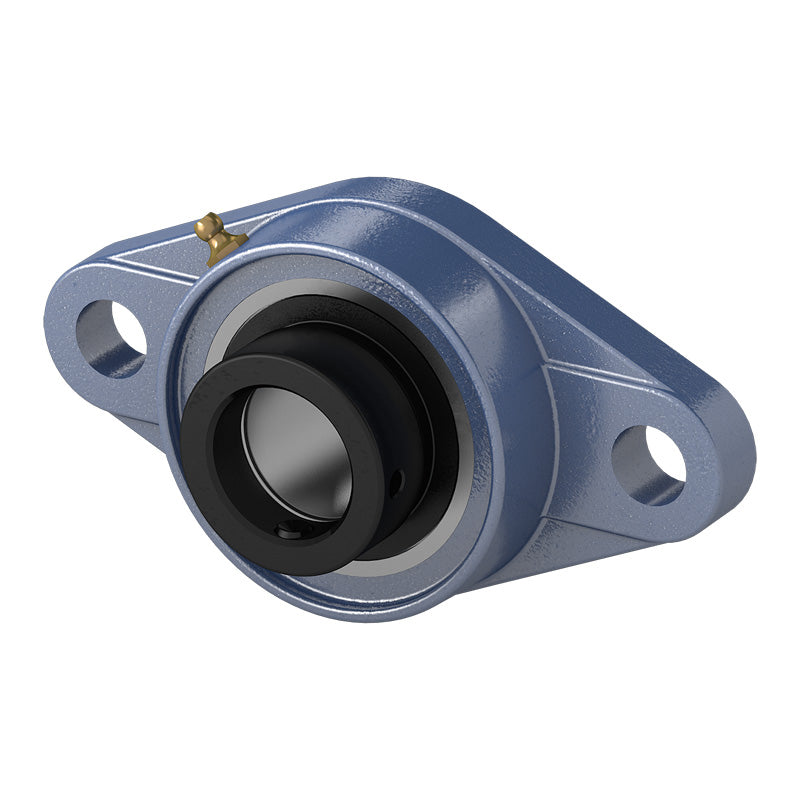

HCFL207 Metric Two Bolt Cast Iron Oval Housing with 35mm Eccentric Collar Insert
HCFL207 Metric Two Bolt Cast Iron Oval Housing with 35mm Eccentric Collar Insert
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
3+
CHF 13.02
4+
CHF 12.29
9+
CHF 12.14
19+
CHF 12.00
49+
CHF 11.85
99+
CHF 11.70
499+
CHF 10.97
999+
CHF 10.83
1999+
CHF 10.68
2999+
CHF 10.53
4999+
CHF 10.24
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- HCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| l | 34mm |
| s | 16mm |
| b | 90mm |
| z | 51.3mm |
| B1 | 51.1mm |
| n | 18.8mm |
| Bolt size | M14 |
| Bearing no | HC207 |
| Housing no | FL207 |
| Weight | 1.24 kg |
