SKU: HCFL210

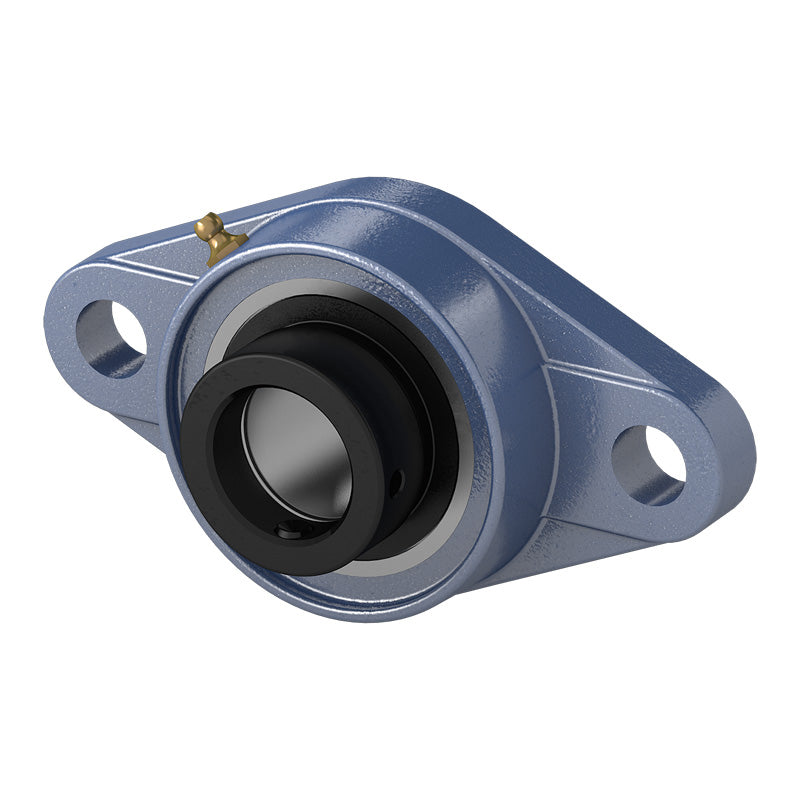

HCFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Eccentric Collar Insert
HCFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Eccentric Collar Insert
Regular price
CHF 46.77
ex VAT
Regular price
Sale price
CHF 46.77
ex VAT
In stock
Price Break
10+
CHF 41.63
19+
CHF 39.29
29+
CHF 38.82
39+
CHF 38.35
49+
CHF 37.88
74+
CHF 37.42
99+
CHF 35.08
199+
CHF 34.61
249+
CHF 34.14
499+
CHF 33.67
999+
CHF 32.74
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- HCFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 197mm |
| e | 157mm |
| i | 22mm |
| g | 15mm |
| l | 40mm |
| s | 19mm |
| b | 115mm |
| z | 60.1mm |
| B1 | 62.7mm |
| n | 24.6mm |
| Bolt size | M16 |
| Bearing no | HC210 |
| Housing no | FL210 |
| Weight | 2.21 kg |
