SKU: HCFL211

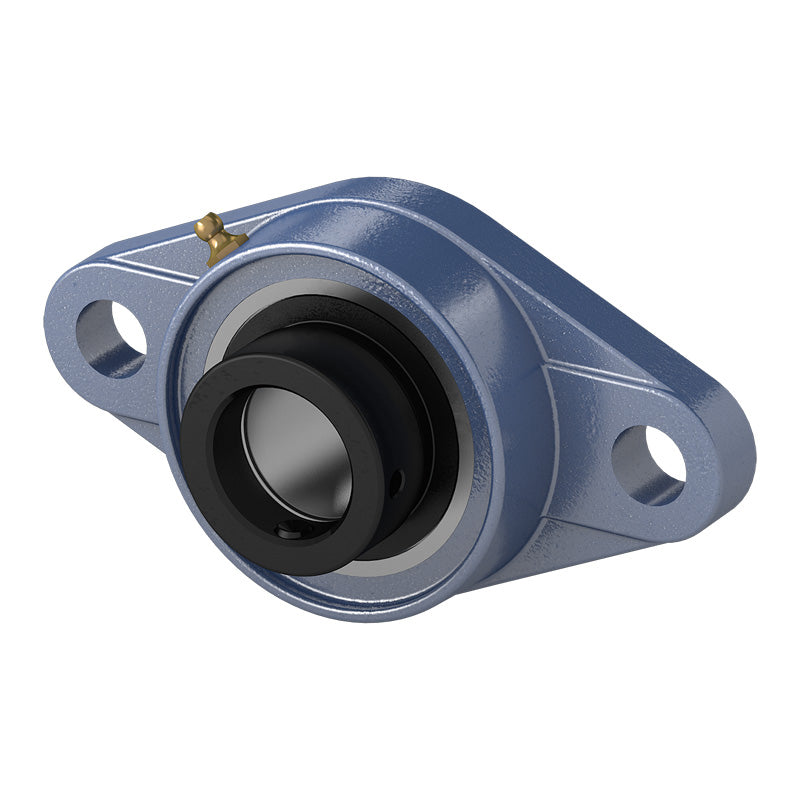

HCFL211 Metric Two Bolt Cast Iron Oval Housing with 55mm Eccentric Collar Insert
HCFL211 Metric Two Bolt Cast Iron Oval Housing with 55mm Eccentric Collar Insert
Regular price
CHF 70.46
ex VAT
Regular price
Sale price
CHF 70.46
ex VAT
In stock
Price Break
10+
CHF 62.71
19+
CHF 59.19
29+
CHF 58.48
39+
CHF 57.78
49+
CHF 57.07
74+
CHF 56.37
99+
CHF 52.85
199+
CHF 52.14
249+
CHF 51.44
499+
CHF 50.73
999+
CHF 49.32
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- HCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 55mm |
|---|---|
| a | 224mm |
| e | 184mm |
| i | 25mm |
| g | 18mm |
| l | 43mm |
| s | 19mm |
| b | 130mm |
| z | 68.6mm |
| B1 | 71.4mm |
| n | 27.8mm |
| Bolt size | M16 |
| Bearing no | HC211 |
| Housing no | FL211 |
| Weight | 3.06 kg |
