SKU: HCFL211-32

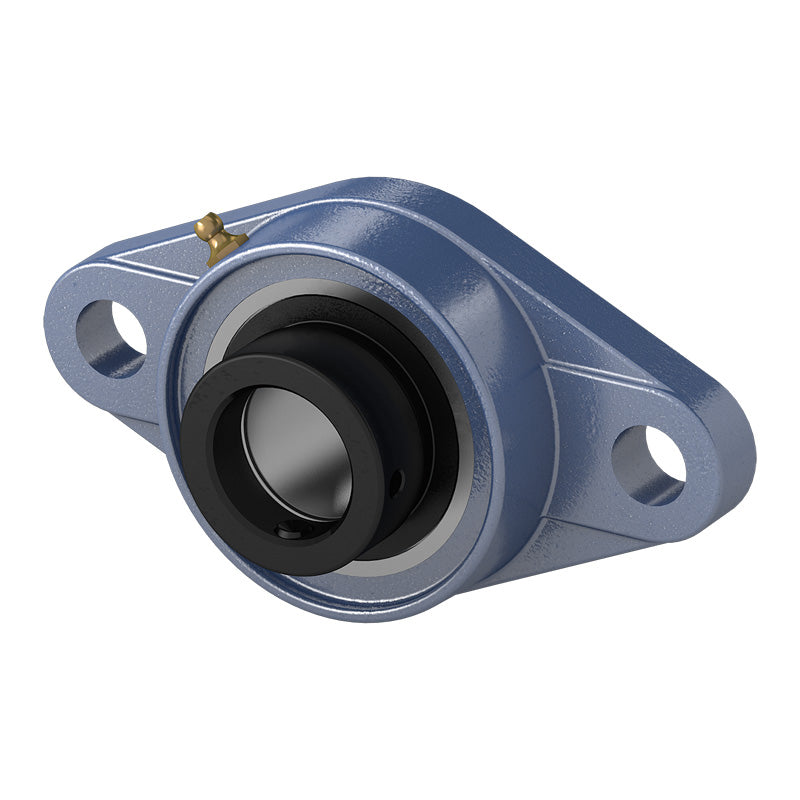

HCFL211-32 Imperial Two Bolt Cast Iron Oval Housing with 2 inch Eccentric Collar Insert
HCFL211-32 Imperial Two Bolt Cast Iron Oval Housing with 2 inch Eccentric Collar Insert
Regular price
CHF 56.76
ex VAT
Regular price
Sale price
CHF 56.76
ex VAT
In stock
Price Break
10+
CHF 50.52
19+
CHF 47.68
29+
CHF 47.11
39+
CHF 46.54
49+
CHF 45.98
74+
CHF 45.41
99+
CHF 42.57
199+
CHF 42.00
249+
CHF 41.43
499+
CHF 40.87
999+
CHF 39.73
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- HCFL
- Bolt Hole Centres:
- 184.15mm = 7.25 (7-1/4) inch
Technical
Technical
| d | 2 inch |
|---|---|
| a | 8-13/16 inch |
| e | 7-1/4 inch |
| i | 63/64 inch |
| g | 23/32 inch |
| l | 1-11/16 inch |
| s | 3/4 inch |
| b | 5-1/8 inch |
| z | 2-45/64 inch |
| B1 | 2.811 inch |
| n | 1.094 inch |
| Bolt size | 5/8 inch |
| Bearing no | HC211-32 |
| Housing no | FL211 |
| Weight | 3.36 kg |
